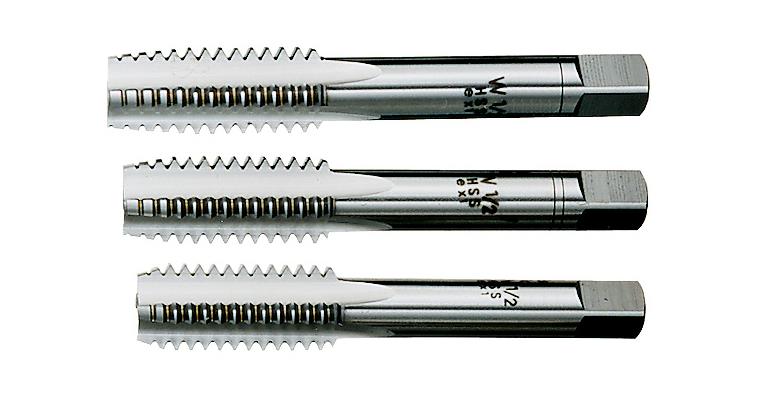

Hand tap set DIN 352 3 pieces HSS BSW 3/8

Hand tap set DIN 352 3 pieces HSS BSW 3/8

Hand tap set DIN 352 3 pieces HSS BSW 3/8
Item no: 1014059 205

Online price:

Available in 8-10 working days.

Application
For the production of Whitworth threads DIN 11. For unalloyed and low-alloy steels up to 900 N/mm² strength.

Execution
  • Set containing taper tap (shape A), second tap (shape D) and third tap (plug) (shape C)
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter in inches: BSW 3/8 in
Nominal diameter in inches: 3/8 in
Number of thread starts per inch: 16
Core hole diameter: 7,90 mm
Length: 63 mm
Shank diameter: 7 mm
Shank square: 5,5 mm
Twist angle: 0°
Colour ring system: Steels
Included in delivery: Vor-, Mittel- und Fertigschneider
Shank style: Cylindrical with square drive
Design: Set
Thread type: Whitworth thread
DIN: 352
Cutting direction: Right-hand cutting
Cutting material: HSS
Hole type: Clearance/blind hole ≤ 3xD

EAN no.: 4024496019472

Product Datasheet
