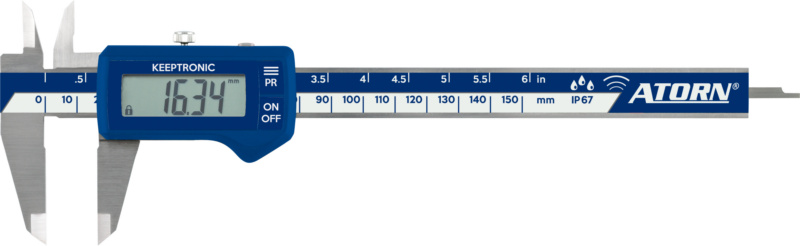

ATORN vernier calipers IP67 electr. 150 mm depth gauge flat

Versions

Item no: 1031034 402

Online price:

Catalogue price: You save:

Available for immediate delivery

Min. order quantity: 1

Application
For measuring external, internal, step and depth dimensions.

Execution

ON/OFF
Zero setting at any position
mm/inch changeover
AUTO OFF
ABS function
Protection rating: IP67
Keeptronic system
High-contrast display

Advantage

key lock to prevent unintentional adjustment
Simple and reliable measurement reading thanks to large and high-contrast display
Switched on using the ON button or automatically switched on by calliper movement

Delivery
In a case, with battery (1 x 3 V lithium, type CR 2032)

Brand: ATORN
Min./max. length measuring range: 0-150 mm
Data transmission type: No
Depth gauge rod: Flat
IP protection class: IP 67
Length of jaw: 40 mm
Digit height: 11 mm
Length of cross tips: 16 mm
Digit increment: 0,01 mm
Type of locating: With locking screw
Number of rechargeable batteries/batteries: 1 PCS
Battery designation: 3V CR2032 Lithium
Calibration Group: A
ISO: 13385-1
Functions: Hold-function (AE lock) | Preset function | Reversal of counting direction | With mm / inch switching | Lock-function (Keybord lock) | On/Off | Automatic switch-on (movement of the slide/measuring bolt) | With zero setting at any position

ATORN-No.: 30403036

EAN no.: 4050293668568

Product Datasheet
