Hand tap set 3 pieces DIN 352 HSS M1

Hand tap set 3 pieces DIN 352 HSS M1

Hand tap set 3 pieces DIN 352 HSS M1
Item no: 1014010 301

Online price:

Still in stock: 5

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Set containing taper tap (shape A), second tap (shape D) and third tap (plug) (shape C)
  • Right-cutting
  • Straight-grooved
  • Up to M 1.4 tolerance field ISO 1 (4H)
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M1
Pitch: 0,25 mm
Core hole diameter: 0,75 mm
Length: 32 mm
Shank diameter: 2,5 mm
Shank square: 2,1 mm
Twist angle: 0°
Colour ring system: Steels
Included in delivery: Vor-, Mittel- und Fertigschneider
Shank style: Cylindrical with square drive
Design: Set
Thread type: Metric thread
DIN: 352
Cutting direction: Right-hand cutting
Cutting material: HSS
Coolant supply: External
Nominal diameter: 1 mm
Hole type: Clearance/blind hole ≤ 2xD
Tolerance of screw taps: 6H

EAN no.: 4024496015504

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Hand tap set 3 pieces DIN 352 HSS M7
  •
    Hand tap set 3 pieces DIN 352 HSS M9
  •
    3/8 inch hexagon impact screwdriver bit CV special steel AF 8 mm
  •
    RH reamer RPS400J5D6 shank size 1 to drilling depth 5xD polygonal insert seat
  •
    Hand tap set 3 pieces DIN 352 HSS M2
    41,74 €
  • SG 4/4 *EU steam cleaner
  •
    1/4 inch hex imp. screwdr. bit CV special steel long AF 7 mm + spr. load magnet
  •
    ATORN machine tap M2.3 HSSE vaporised for through hole
  •

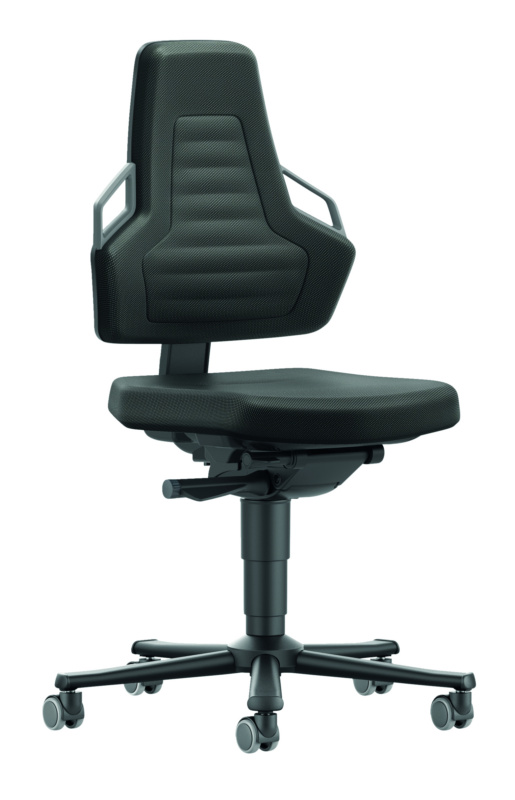

    Swiv wrk chair Nexxit 2 seat height 450-600mm w cast, black fabric, grey handle
  •
