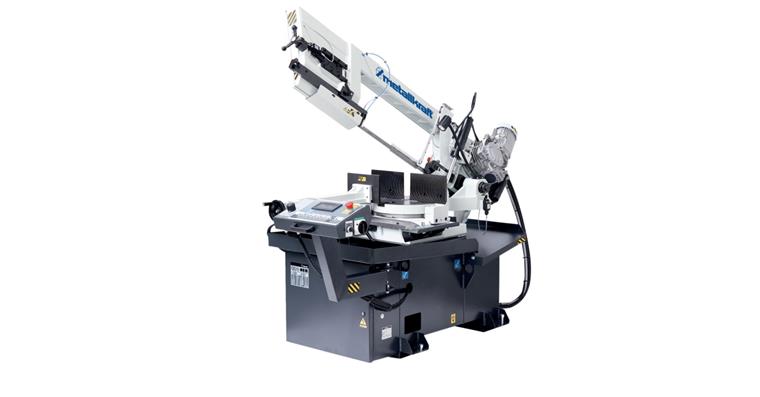

Hydraulic swivel frame metal band saw type BMBS 300x320 HA-DG

Hydraulic swivel frame metal band saw type BMBS 300x320 HA-DG

Hydraulic swivel frame metal band saw type BMBS 300x320 HA-DG
Item no: 1092862 101

Online price:

Availability on demand

Application
For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials. Recommended cutting area for solid material (round) 0° 180 mm/45°R 110 mm/45°L 110 mm/60°R 80 mm.

Execution
  • Semi-automatic metal bandsaw with hydraulically swivelling frame
  • For mitre cuts from +60° to -45°
  • With hydraulically controlled saw functions
  • Saw belt drive with low-maintenance, oil-lubricated
  • Worm gear
  • With a rugged three-phase motor 400 V/50 Hz, 2.4 kW,
  • With overload protection
  • With frequency converter: allows infinitely variable
  • Saw band speed can be set from 20-
  • 100 m/min
    - Saw arm inclined by 25°, thus longer
    service life of the saw band
    - With chip removal brush for keeping the saw band
    perfectly clean and maintained
    - Hydraulic vice with manual quick-action clamp
    for side adjustment
    - Limit switches control the upper and lower position
    of the saw arm
    - BRP - monitoring of saw band
    - Ball bearing-mounted turntable
    - With cut probe


Brand: METALLKRAFT

Manufacturer part no.: 3690041

EAN no.: 4036351205432

Product Datasheet
