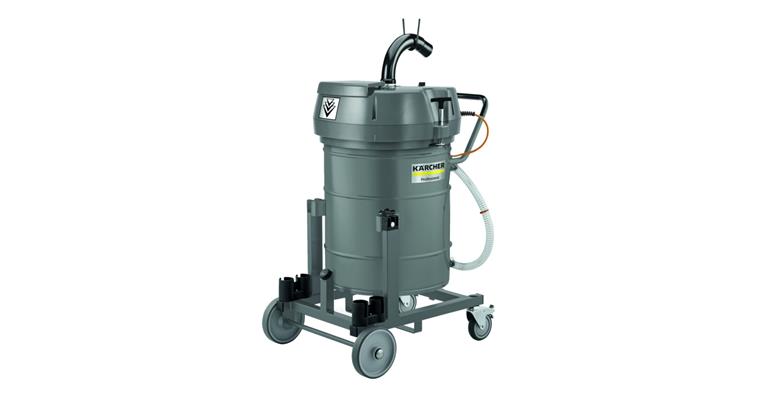

KÄRCHER - IVR-L 100/24-2 Tc industrial vacuum

Application
The compact IVR-L 100/24-2 Tc is a robust Ringler-type industrial vacuum cleaner with tilting frame and 100 litre container. This makes the vacuum cleaner ideal for vacuuming up large quantities of liquid and/or solid material such as swarf (virtually dust-free). The optional chip basket allows the solids to be easily separated from the liquid. The current fill level is clearly indicated on the drain hose. Can be emptied either via the drain hose or using the tilting frame. The robust design and oil-resistant castors and power cable ensure a long service life - even in the toughest industrial applications. The robust construction also allows it to be carried with a forklift truck.

Execution

New drive head for increased safety, comfort and performance; the low weight of the drive head facilitates handling during transport, emptying and maintenance. Increased safety during transport by attaching the cable to the machine head. Integrated exhaust air cover to prevent contamination in the motor area.
360° working radius; clean working in every direction thanks to the rotatable hose connection on the suction head. The suction hose does not get twisted.
Secure accessory mounting; suction hose hook and dedicated accessory holders ensure that the machine is kept tidy and ready to use at all times.
Robust material, designed for industrial use; ideal for applications in the metalworking industry
Practical tilting frame; quick and easy tank emptying: simply tilt back and empty.

Delivery
- Tilting frame for container emptying
- No additional accessories included

Notes
DN40 or DN50 accessories, for DN40 accessories with adapter art. no.: 1092230 103

Brand: KÄRCHER
Model: IVR-L 100/24-2 Tc
Power input: 2400 W
Max. air delivery volume: 148 l/s
Underpressure: 230 mbar
Bin capacity: 100 l
Cable length: 10 m
Inner hose diameter (Anschlussnennweite): 50 mm
Length x width x height: 840 x 660 x 1320 mm
Weight: 50 kg
Colour: Anthracite
Height: 1320 mm
Length: 840 mm
Material of bins: Steel
Sound-pressure level: 68 dB
Width: 660 mm
Included in delivery: Container emptying
Type: IVR-L 100/24-2 Tc
