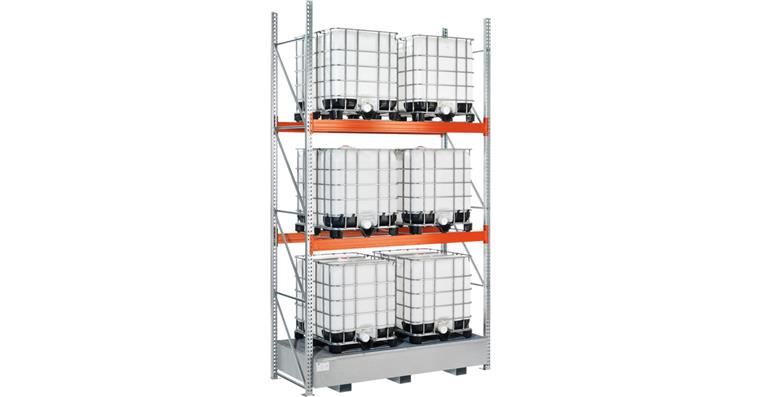

Hazardous materials KTC rack, basic bay, 3 levels w/ collection tray 1000 l

Hazardous materials KTC rack, basic bay, 3 levels w/ collection tray 1000 l

Hazardous materials KTC rack, basic bay, 3 levels w/ collection tray 1000 l
Item no: 1085616 601

Online price:

Availability on demand

Application
For storing IBC/IBC or large containers.

Execution
  • Pallet shelves:
  • Racks consist of cold-formed profiles, screwed to the bracing on site
  • Height-adjustable storage levels in increments of 50 mm
  • Zinc-plated support frame
  • Longitudinal cross beams plastic-coated in RAL 2001 red orange
  • Shelf floor tray:
  • Collecting tray from 3 mm sheet steel
  • Hot-dip galvanised corrosion protection
  • Ground clearance 100 mm

Advantage
  • Pallet shelves with quality mark RAL-RG 614/2 pallet shelves
  • Collection tray according to WHG (German water resources act), test mark according to StawaR (German steel tank guideline)
  • The combination of pallet shelves with quality seals and shelf base trays in accordance with the water resources act gives you a flexible, cost-effective storage system that can be expanded at any time

Notes
Art. no. 1085616 601-602: Collection tray with grating storage space for use as a first storage level.

Brand: LACONT
Max. number of 1000-litre containers (IBC): 6 PCS
Height x width x depth: 4900 x 2870 x 1100 mm
Number of levels: 3 PCS
Bay load: 7020 kg
Clear width: 2700 mm
Collection volume: 1000 l
Depth: 1100 mm
Design: Shelving unit
Height: 4900 mm
Shelf load: 3490 kg
Tray depth: 1300 mm
Tray height: 485 mm
Tray width: 2680 mm
Width: 2870 mm

Manufacturer part no.: R23-3616-D

EAN no.: 4024496127535

Product Datasheet
