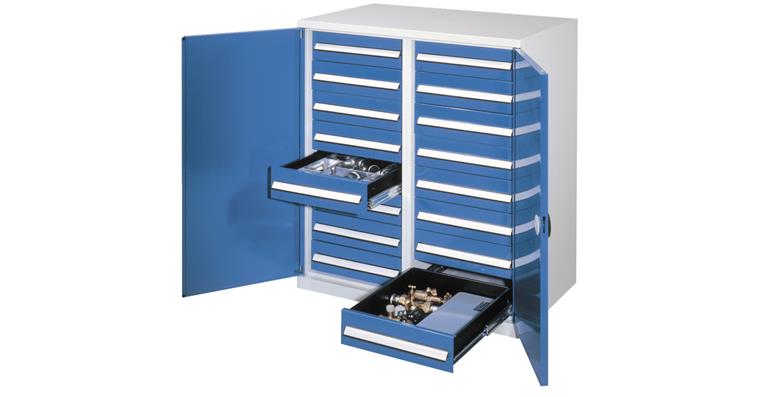

Heavy-duty cabinet 1110x1000x600mm RAL7035/5012 w/ centr. divider, 16 drawers

Heavy-duty cabinet 1110x1000x600mm RAL7035/5012 w/ centr. divider, 16 drawers

Heavy-duty cabinet 1110x1000x600mm RAL7035/5012 w/ centr. divider, 16 drawers
Item no: 1085166 104

Online price:

Availability on demand

Execution
  • Drawers WxD 443x500 mm
  • Telescopic-guided drawers with full-extension slide
  • Drawer load 110 kg of evenly distributed load.
  • Zinc-plated shelves (end no. 104, 204, 304, 404 without shelves), load capacity 80 kg with evenly distributed load, adjustable in increments of 25 mm
  • Extremely robust welded steel construction with brazed corners
  • Impact-resistant and scratch-resistant plastic coating
  • Double-walled, reinforced solid sheet metal doors
  • Smooth fronts due to flush overlay doors, opening angle of over 200°
  • Continuous rod guides
  • Three-pin cylinder safety lock

Advantage
  • Load-bearing capacity 1.65 tonnes
  • The cabinet floor alone can carry up to 400 kg of evenly distributed load.

Notes
Drawer lock available on request.
Doors available in reseda green (not held in stock) on request.
For additional shelves, see art. no. 1085180.

Brand: KAPPES
Depth: 600 mm
Width: 1000 mm
Number of shelves: 0 PCS
Height: 1110 mm
Door design: Full-sheet panel
Load-carrying capacity per shelf: 80 kg
Number of drawers: 16 PCS
Drawer front height: 16 x 125 mm
Load-carrying capacity per drawer: 110 kg
Pullout type: Full extension
With partition wall: Yes
Central locking: Yes
Lock type: Twist-grip lock with three-point fastening
Material: Sheet steel
Colour of front: Light blue RAL 5012
Surface: Powder-coated
Cabinet colour: Light grey RAL 7035

Manufacturer part no.: 1472.03.2023

EAN no.: 4251142219195
