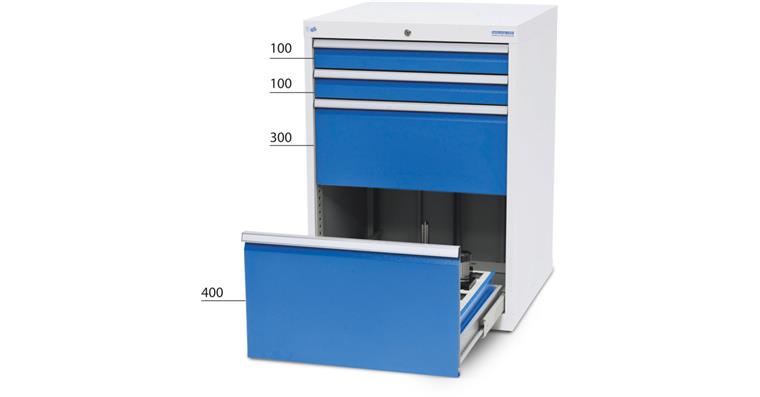

CNC drawer cabinet 4 drawers 2x100 1x300 1x 400mm 705x736x1019mm 5012

CNC drawer cabinet 4 drawers 2x100 1x300 1x 400mm 705x736x1019mm 5012

CNC drawer cabinet 4 drawers 2x100 1x300 1x 400mm 705x736x1019mm 5012
Item no: 1083955 101

Online price:

Availability on demand

Execution
  • Plastic-coated cover panel
  • Drawers with 100 % full-extension slide
  • 4 ball-bearing-mounted drawers
  • Drawer panel heights:
  • 2x 100 mm: Load capacity: 100 kg
  • 1x 300 mm: Load capacity: 180 kg
  • 1x 400 mm: Load capacity: 180 kg

Delivery
Tool holder carrier (art. no. 1083950 601 and 603) and plastic inserts/frames (art. no. 1083945) not included.

Notes
For tool holder frames, see art. no. 1083952 601.
Drawers with front heights of 300 mm and 400 mm can hold 5 tool holder carriers art. no. 1083950 601 and 603.

Brand: BEDRUNKA HIRTH
Cabinet colour: Light grey RAL 7035
Colour of front: Light blue RAL 5012
Height: 1019 mm
Width: 705 mm
Depth: 736 mm
Number of drawers: 4 PCS
Pullout type: Full extension
With single pull-out safety brake: Yes
With SOFT-CLOSE closing function: No
Central locking: Yes
Material: Sheet steel
Surface: Powder-coated
Drawer width (inner dimension): 600 mm
Drawer depth (inner dimension): 600 mm
Drawer with slots: Yes
Perforated drawer base: No
Lock type: Cylinder lock

Manufacturer part no.: 02.140V 7035/5012

EAN no.: 4024496118106

Product Datasheet
