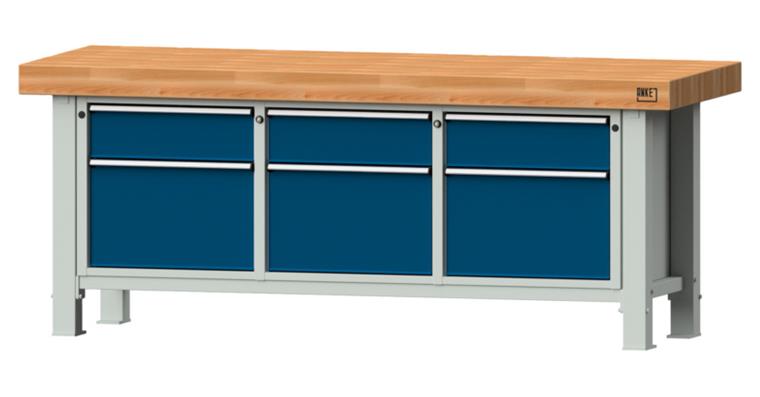

Heavy-duty workbench 2250x800x900mm model 223VS beech solid plate RAL 7035/5010

Versions

Item no: 1082084 502

Online price:

Catalogue price: You save:

Availability on demand

Min. order quantity: 1

Execution

Housing in robust welded sheet steel construction
Useful height of housing 540 mm (= clear internal dimension)
Base frame made of square steel tube 80 x 80 x 3 mm
Welded floor-attachment lugs
High-quality aluminium handle strip with labelling tabs
Central locking: DOM interchangeable cylinder
Lock is master-key-compatible
When creating locking systems, the standard locking core can simply be replaced with a locking-system-compatible locking core
Other colours available on request for a surcharge
TÜV/GS tested

Advantage

Worktop in solid beech (BMP): Panel thickness 100 mm, oiled surface, can be repeatedly sanded down for extremely long service life, robust and highly resilient thanks to special and unique strip bonding: Strips interlocked and bonded lengthways with approximately 60 % greater glue surface to ensure optimum cross-bracing and load values
Total workbench load 4200 kg with evenly distributed surface load

Delivery
Anlieferung fertig montiert

Notes
To order customised hard foam inserts, please use the following clear internal dimensions: WxD 490 mmx530 mm. Load values always apply to evenly distributed surface loads.

Brand: ANKE
Material of worktop: Solid beech
Load-carrying capacity: 4200 kg
Working height: 900 mm
Plate width: 2250 mm
Plate depth: 800 mm
Plate thickness: 100 mm
Number of drawers: 6 PCS
Drawer front height: 3 x 180 mm | 3 x 360 mm
Drawer width (inner dimension): 500 mm
Drawer depth (inner dimension): 540 mm
Load-carrying capacity per drawer: 100 kg
Pullout type: Full extension
With single pull-out safety brake: Yes
Lock type: DOM® locking system
Central locking: Yes
Levelling: No
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Surface: Powder-coated

Manufacturer part no.: 223VS

EAN no.: 4014641015787

Product Datasheet
