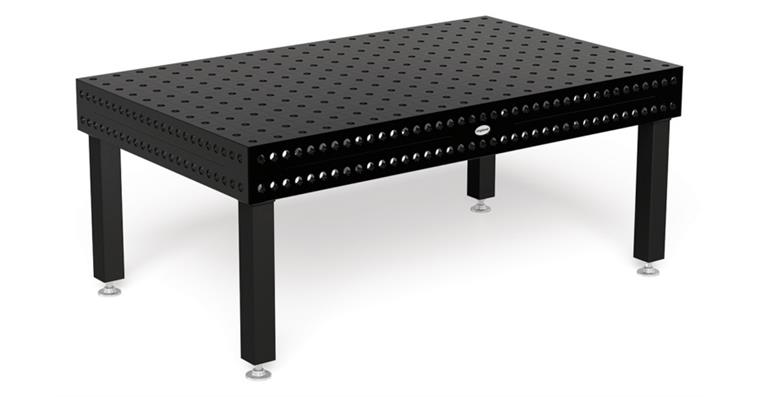

Schweißtisch Professional 2000x1000x200 mm Systemlochung 28 mm

Schweißtisch Professional 2000x1000x200 mm Systemlochung 28 mm

Schweißtisch Professional 2000x1000x200 mm Systemlochung 28 mm
Item no: 1082018 101

Online price:

Available in 8-10 working days.

Application
Aufgrund der erhöhten Belastbarkeit des Schweißtisches eignet er sich besonders für die Bearbeitung schwerer Bauteile.

Execution
  • The Professional 750 welding tables are produced from high quality S355J2+N steel then plasma nitrided and coated
  • The welding table is particularly suitable for processing heavy parts due to its increased load capacity
  • Set up your equipment easily with 100 mm spaced grid lines
  • The welding tables are equipped with a scale as standard
  • Table top material: Steel S355J2+N, plasma-nitrided and BAR coated
  • Table top bore clearance 100 mm
  • Table top bore diameter 28.15 mm
  • Table top material thickness 24.5-27 mm
  • Table top base hardness approx. 165-220 Vickers
  • Table top surface hardness approx. 450-750 Vickers

Advantage
Surface hardness up to 750 Vickers

Notes
Maximum recommended overall static load with even load distribution

Brand: SCHWEIßKRAFT
Plate width: 2000 mm
Plate depth: 1000 mm
Load-carrying capacity: 2000 kg
Height: 850 mm
Adjustable in height: No

Manufacturer part no.: 190280060P

EAN no.: 4036351280637

Product Datasheet
