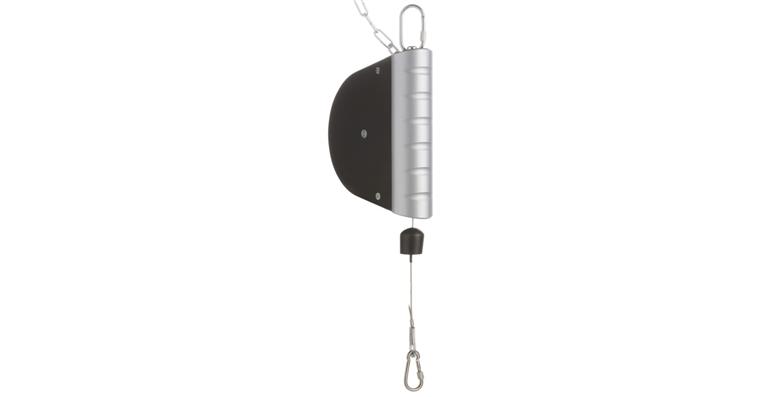

Spring balance, cable extension 3000mm, cable dia. 3mm, load capacity 7.0-10.0kg

Spring balance, cable extension 3000mm, cable dia. 3mm, load capacity 7.0-10.0kg

Spring balance, cable extension 3000mm, cable dia. 3mm, load capacity 7.0-10.0kg
Item no: 1080102 103

Online price:

Available in 4-6 working days.

Execution
  • Housing made of extremely impact-resistant special plastic
  • High-strength and hooped special motive spring
  • Cable, diameter 3 mm, can be replaced very easily
  • Cable extension: Infinitely adjustable
  • Cable feed limitation is impact absorbing and adjustable
  • Cable drum is made from wear-resistant plastic
  • Spring breakage protection
  • Lockable cable drum
  • Push clamp for securing the cable end
  • Suspension via a freely turning and swivelling safety snap hook

Advantage
  • Infinitely variable load setting via an adjusting screw with over-twist safeguard
  • No wear due to corrosion
  • Effortless work

Delivery
Fall arrester in accordance with DIN 15112 included in the scope of delivery


Brand: ---
Min. load-carrying capacity: 7,0 kg
Max. load-carrying capacity: 10,0 kg
With automatic locking: No
Max. cable pull-out length: 3000 mm
Adjustable cord length: Yes
Material of cord: Steel
Wire cable diameter: 3 mm
Replaceable cord: Yes
Cord in-feed restriction: Absorbs impacts, adjustable
Material of cable drum: Abrasion-proof plastic
Suspension type: Freely rotating and pivot screw karabiner hook
Load attachment: Screw Karabiner hook
Colour of housing: Black
Material of housing: Plastic
Housing height: 259,4 mm
Housing width: 211,5 mm
Housing thickness: 70 mm
Height: 550 mm
Spring design: Special mainspring
With overrotation protection: Yes
Spring breakage protection: Yes
Number of springs: 1 PCS
DIN: 15112
