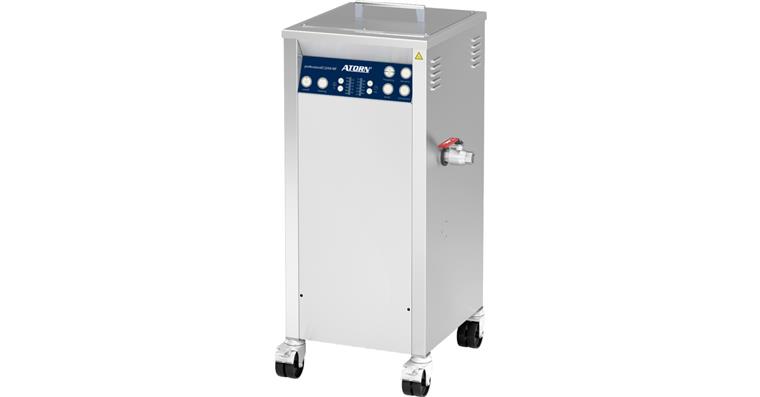

ApplicationFor cleaning stubborn dirt such as grease, oil, lapping and polishing compounds, swarf, flux, paint residue, soot, scale dust, etc. and for parts with delicate surfaces. The ultrasonic cleaning devices in the Pro MF model series are designed as multi-frequency devices. They are used primarily in the metalworking industry for gentle but intensive cleaning of parts made from steel, light metal, non-ferrous base metal, plastic and glass. These devices are also suitable for cleaning spindle-side tool fixtures and for preliminary cleaning of parts for subsequent surface treatment.
The switchable dynamic, pulse and sweep function improves cleaning performance for removing particularly stubborn dirt. The result is maximum cleanliness even in hard-to-reach spots. 25 kHz ultrasonic frequency for coarse and preliminary cleaning, 45 kHz for fine cleaning.
Execution- multi-frequency devices with 25 and 45 kHz operation for coarse, preliminary and fine cleaning
- heating system with temperature regulation from 30°C to 80°C, short heat-up times
- automatic safety shutdown after 12 hours of operation or at a bath temperature of 90°C
- free-standing device on rollers with controls on front
- ultrasonic bath made from special, highly cavitation-proof stainless steel
- inclined bath floor for improved drainage
- suspension device for cleaning and draining positions
- dynamic mode: automatic alternation between sweep and pulse function
- Base-mounted transducers
Advantage- sweep function for homogeneous sound distribution in the cleaning bath
- switchable dynamic and pulse function to improve ultrasonic cleaning performance
- all devices are equipped with multi-frequency operation (25/45 kHz), base-mounted transducers and heating
- temperature-controlled ultrasound activation at pre-heated temperature
- 3-year warranty if used correctly in single-shift operation
DeliveryUltrasonic cleaning device without insert basket, without lid
NotesPerform cleaning in process steps with optional peripheral units for ATORN ultrasonic cleaning devices, such as washbasins, rinsing units, oscillators and filter units.
