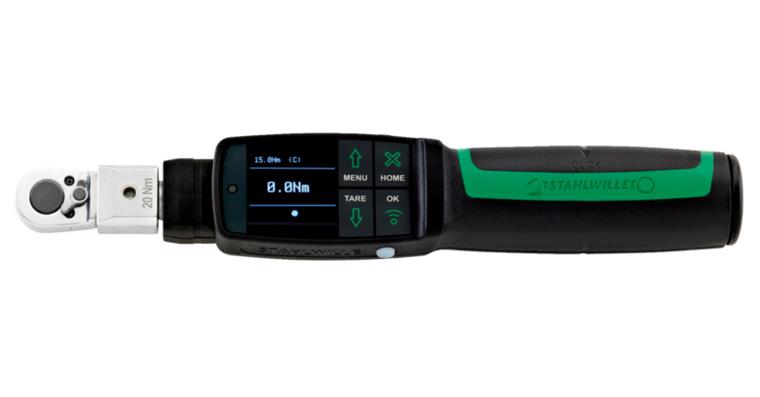

Elektromech. Drehmoment- Drehmomentschlüssel 3/8 Zoll 6 - 60 Nm

Elektromech. Drehmoment- Drehmomentschlüssel 3/8 Zoll 6 - 60 Nm

Elektromech. Drehmoment- Drehmomentschlüssel 3/8 Zoll 6 - 60 Nm
Item no: 1055846 104

Online price:

Available in 4-6 working days.

Execution
  • Four measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
  • High-resolution colour graphic display with side signal lights
  • Freely configurable menu layout
  • Three function modes: Release, Peak and Track (display operation with peak value or current value)
  • Micro USB 2.0 interface
  • Bayonet catch for battery compartment
  • QuickRelease safety lock changing system for plug-in tools
  • Angle of rotation measurement without reference arm
  • Data storage (2,500 screwing operations)
  • Up to 200 screw joints in up to 25 processes can be programmed
    • Different tolerance limits can be set depending on the screwing application

    • Acoustic/visual evaluation of the screwing application

    • Fast and precise setting via keyboard

    • No accidental adjustment thanks to automatic key lock

    • Overload protection by means of acoustic and visual warning and forced release

    • Automatic notification of the next calibration date

    • Fully automatic calibration and adjustment using perfectControl calibration and adjustment tool no. 7794-5 (torque) or no. 7794-3 (torque and angle of rotation)

    • Measurement units: Nm, ft.lb, in.lb

    • Correct tightening torque is reached automatically after input of a different pitch

    • Ready for operation again immediately after discharge

    • Clockwise/anti-clockwise tightening

    • Perceptible, visual and acoustic release signal

    • Torque and angle can be viewed at the same time

    • Measurement independent of the force application point (end no. 101-103)

    • Safe to use thanks to ergonomic handle

    • In plastic case

Notes
4x AAA batteries or NIMH rechargeable battery.
2x calibration certificates in accordance with DIN EN ISO 6789-2:2017 (indicating and click-type)
1x angle of rotation calibration certificate

Brand: STAHLWILLE
Tip type: Square-cut
Min./max. torque measuring range: 6-60 Nm
Torque measuring accuracy: +/- 1 %
Tip size: 3/8 inch
Insert shank square: 9 x 12 mm
Length: 393 mm
Error limit (%): 2

Manufacturer part no.: 714R/6

EAN no.: 4018754212743

Product Datasheet
