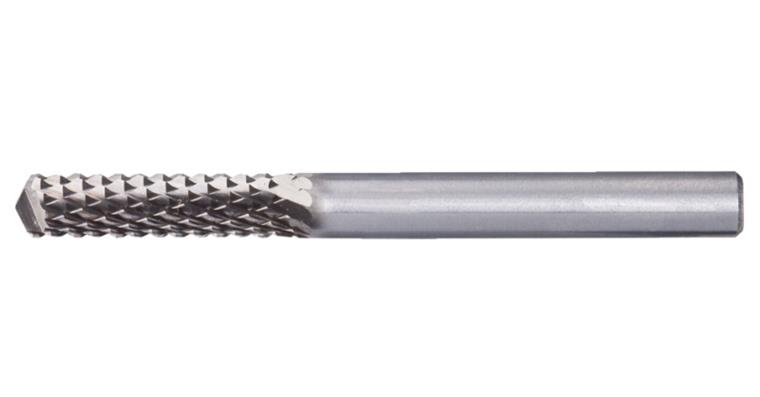

TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 8x30mm L=65mm

TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 8x30mm L=65mm

1044294102 TC bur with centring drill tip for GFRP+CRP, serration FRP, dia. 8x30mm L=65mm
Item no: 1044294 102

Online price:

Available in 6-8 working days.

Application
For machining GFRP (glass fibre-reinforced plastics) and CFRP (carbon fibre-reinforced plastics).
Intended for trimming and contour milling of GFRP and CFRP fibre-reinforced plastics, hard rubber and thermoplastics.

Execution
  • FRP serration: Coarse machining = high degree of material removal
  • Art. nos. 1044293 101-102: The special drill cutting edge (BS) can be inserted into solid material, allowing drilling and milling to be completed in a single step
  • Art. nos. 1044294 101-102: The centring drill tip (ZBS) can be inserted into solid material, allowing drilling and milling to be completed in a single step. Designed specifically for manual use. The centring drill tip permits reliable spot drilling on almost all surfaces.

Advantage
Suitable for use with machine tools and manual use due to the high degree of concentricity


Brand: PFERD
Material to be processed: GRP | CFK | Hard plastic | Rubber
Serration type: FVK
Form: Cylindrical
Head diameter: 8 mm
Head diameter x cutting edge length: 8 x 30 mm
Shank diameter: 8 mm
Length: 65 mm
Cutting edge diameter: 8 mm
Cutting edge diameter x cutting edge length: 8 x 30 mm
Cutting edge length: 30 mm
Cutting material: Carbide

Manufacturer part no.: ZYA 0825/8 ZBS

EAN no.: 4007220869079

Product Datasheet
