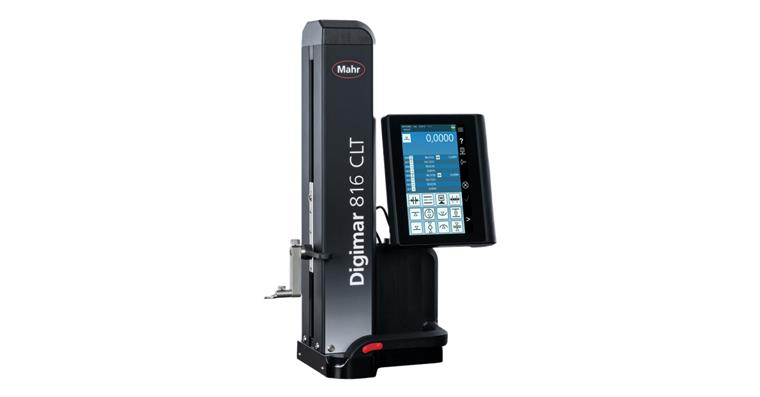

816 CLT Höhenmessgerät Digimar 0-350 mm

816 CLT Höhenmessgerät Digimar 0-350 mm

816 CLT Höhenmessgerät Digimar 0-350 mm
Item no: 1035090 201

Online price:

Available in 6-8 working days.

Application
For measuring external, internal, height, depth and distance dimensions, as well as diameters and reversal points in bores and shafts. In addition, for a variety of measuring functions in two coordinate directions, such as recording dynamic straightness and perpendicularity deviations

Execution
  • 10 inch touch control panel for extremely simple, convenient operation via large operating keys
  • Fast and reliable execution of measurements and calculation functions
  • Logs can be saved directly to the device as a PDF
  • Wireless transfer of measurement value lists to Bluetooth printers
  • Transfer of measured values wirelessly or via USB using the proven and reliable MarConnect interface
  • Simple creation of measurement programs (via teach-in or drag and drop)
  • Air cushioning system for easy, smooth movement
  • Temperature compensation via integrated temperature sensor possible
  • Functions: Top/bottom probing, bar width or groove spacing incl. bar or groove centre, bore/shaft diameter incl. bore or shaft centre, reversal point of bores (top/bottom), reversal point of shaft (top/bottom), calculate spacing/symmetry, dynamic measurement functions, perpendicularity measurement, straightness measurement

Advantage
  • Future-proof due to update capability
  • Additional measuring device can be connected with MarConnect USB interface

Delivery
1x height measuring device incl. operating and display element
1x carrier
1x indicator contact point
1x setting block
USB cable
Operating instructions
Mains charger
Protective cover
Calibration certificate


Brand: MAHR
Calibration Group: M
Type: Digimar 816 CLT 350 mm
Length measuring range: 350 mm
Min./max. application area with standard gauge slide carrier: 0-520 mm
Digit increment (can be pre-selected): 0.01 mm | 0.005 mm | 0.001 mm | 0.0005 mm | 0.0001 mm
Height gauge error limit: 2.0 + L/400 (L in mm)
Repeat accuracy of drill hole: 0,002 mm
Repetition accuracy, level: 0,001 mm
Perpendicularity tolerance (front): 5 µm
Min./max. measurement force: 0.8-1.2 N
Max. battery operating time: 14 h
Data transmission type: Wireless | USB
With air cushion equipment: Yes
Weight: 22 kg
Max. application area with standard gauge slide carrier: 520 mm
Max. measurement force: 1,2 N
Min. application area with standard gauge slide carrier: 0 mm
Min. measuring force: 0,8 N

Manufacturer part no.: 4429630

EAN no.: 4059192066871

Product Datasheet
