ApplicationFor measuring external, internal, height, depth and distance measurements, parallelism deviations and inside and outside diameter using the QuickCenter dynamic function.
Execution- Manual measuring slide movement using handwheel
- Large control panel 92x121 mm with keypad and colour display
- Control panel IP65 splash-proof
- Integrated Li-ion battery 12.8 V 3 Ah, rechargeable
- Includes SCS calibration certificate
- Measurement system IP55 protection against contact, dust and water
- Basis auf Gusseisen
Advantage- Contextual help provides specific information and supports the user in performing measuring tasks
- Clear measurement result display provides optimal readability (digit size 10x21mm)
- QuickCenter dynamic function for efficiently determining reversal points
- Flexible data management, allowing for easy data export
- Best possible workshop compatibility thanks to IP55-protected measurement system

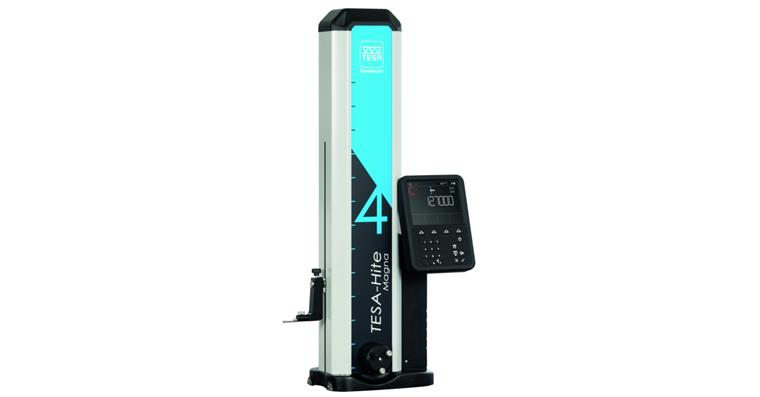

Delivery1x height measuring instrument incl. control panel
1x standard test indicator shank
1x standard indicator contact point with carbide ball dia. 5 mm
1x reference piece
Power supply and cable
SCS certificate
Declaration of conformity
Quick start guide
Operating instructions on USB stick
NotesFor connection cable, see art. no. 1035200 315, 316.
For wireless data transmission, see art. no. 1035200 501-503.
