TESTO - Digital-Stromzangen-Multimeter testo 770-3, 1000V/600A mit Bluetooth

Application
Kontaktlose Messungen an engliegenden Leitern gehen mit der Stromzange testo 770-3 einfach und sicher von der Hand. Ihr innovativer Greifmechanismus ermöglicht einfaches Arbeiten. Als leistungsstärkstes Modell der Stromzangen-Familie bietet sie für Ihre täglichen Herausforderungen viele Zusatzfunktionen, wie z.B. die Anbindung an die testo Smart App sowie zu weiteren Testo Messgeräten. Durch erhöhte Auflösung liefert die Stromzange auch im unteren Strombereich hochpräzise Ergebnisse.

Execution

bewegliche Zangenschenkel kann vollständig in das Gerät eingefahren werden
speziellere Anwendungen wie Anlaufstrom-, Leistungs- und μA-Messungen durchführbar
Das Zangenamperemeter erkennt und wählt AC/DC und weitere Parameter wie Widerstand, Durchgang, Diode und Kapazität automatisch
Anschließbare Fühler: 1 Temperaturfühler (Adapter für Thermoelemente Typ K erforderlich)
Normen: EN 61326-1; EN 61010-2-032; EN 61140
Zulassungen: CSA; CE
Geräte- und Messfunktionen: Diodentest, Durchgangsprüfung, Displaybeleuchtung, Hold, MinMax, Leistungsmessung, Temperturmessung mit Adapter, True RMS, Anlaufstrom, Bluetooth, Anzeige (Counts) 6.000, autom. Messgrößenerkennung, μA-Strommessbereich

Advantage

Erhöhte Präzision im unteren Strombereich durch erweiterte Auflösung
TRMS-Messung
Auto AC/DC für Spannung und großes zweizeiliges Display
Bluetooth-Verbindung zur testo Smart App und weiteren testo Messgeräten
Einfache Handhabung durch einfahrbaren Zangenschenkel

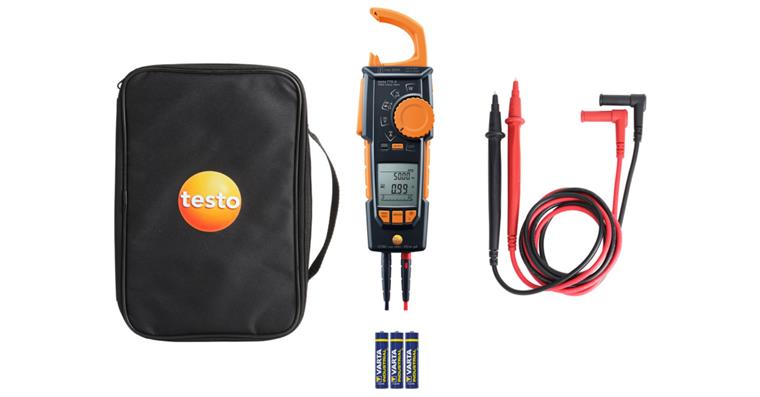

Delivery
testo 770-3 Stromzange mit Bluetooth
1 Satz Messleitungen
Transporttasche
3 Batterien (Typ AAA)
Prüfprotokoll

Brand: TESTO
Min./max. test voltage (DC): 1 V-1000 V
Min./max. test voltage (AC): 0.001 V-1000 V
Min./max. alternating current of measuring range: 0.01 A-600 A
Min./max. direct current of measuring range: 0.01 A-600 A
Min./max. electrical-resistance measuring range: 0.1 MOhm-60 MOhm
Min./max. temperature measuring range: -20 to 500 °C
Measuring procedure: TRUE RMS
Overvoltage protection category: CAT III/1000 V | CAT IV/600 V
Display: LCD
Max. direct current of measuring range: 600 A
Min. direct current of measuring range: 0,01 A
Max. alternating current of measuring range: 600 A
Max. test voltage (AC): 1000 V
Max. test voltage (DC): 1000 V
Min. alternating current of measuring range: 0,01 A
Min. test voltage (AC): 0,001 V
Min. test voltage (DC): 1 V
