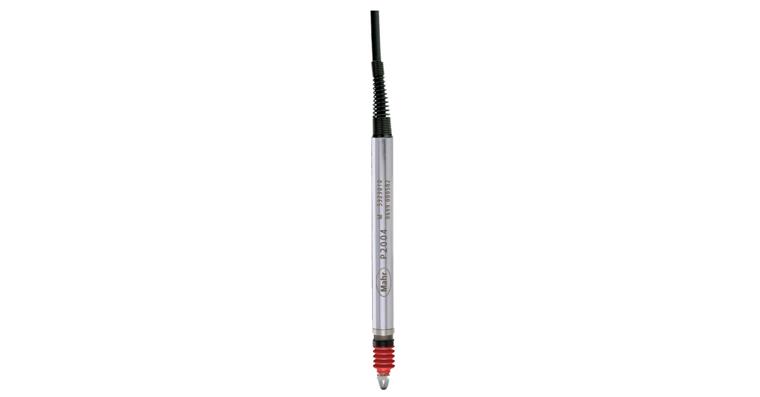

Induktiver Messtaster Millimar P2004 T

Versions

Item no: 1033105 102

Online price:

Catalogue price: You save:

Available in 6-8 working days.

Min. order quantity: 1

Application
Suitable for a wide variety of standard applications in multi-point measuring technology. Can also be used as an alternative to dial gauges or precision pointers in measuring instruments such as internal precision measuring instruments, precision pointer snap gauges etc.

Execution

Measuring pin supported in ball-bearing guide
Excellent linearity over the entire measuring range
Excellent electromagnetic shielding (EMC)
Information on chemical resistance: resistant to oil, petrol, water and aliphatics. Moderately resistant to acids, bases, solvents and ozone

Advantage
All probes can be converted from axial to radial cable output using the supplied cap

Delivery
1x plunger with contact point
Operating instructions
Cap for lateral cable output
Wrench for pre-stroke adjustment

Brand: MAHR
Measuring range of electronic length measuring technology: +/- 2 mm
Model: P 2004 T
Max. spindle travel: 4,4 mm
Cable output direction: Axial | Radial
Spindle lift: Mechanical
Mass force increase: 0,2 N/mm
Measuring span of electronic length measuring technology: 4 mm
Measurement force: 0,75 N
LInearity deviation in the range +/- 0,5 mm: 0,4 µm
LInearity deviation in the range +/- 1,0 mm: 1,5 µm
LInearity deviation in the range +/- 2,0 mm: 3 µm
Repeat accuracy: 0,1 µm
Reversal error: 0,5 µm
Front end position of spindle: -2.2 mm
Working temperature: 20 °C
Min./max. working temperature: 10 to 20 °C
Min./max. operating temperature: -10 to 80 °C
Sensitivity deviation: 0,3 %
Cable length: 2,5 m
IP protection class: IP 64
Compatibility length measurement scanner (Kompatibilität): TESA

Manufacturer part no.: 5323011

EAN no.: 4059192055059
