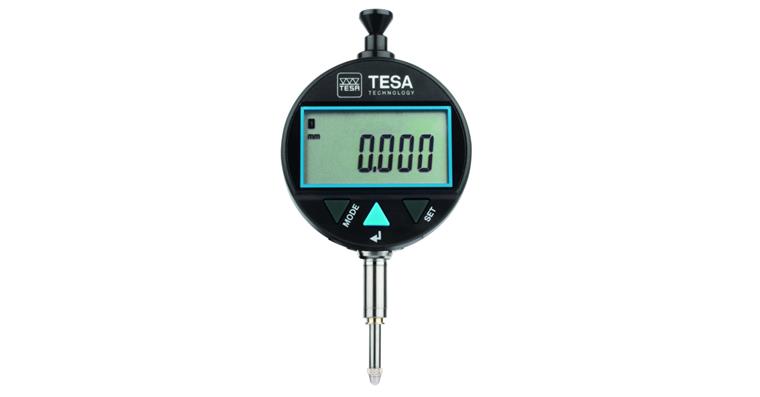

DIALTRONIC EASY digital dial gauge 12.5 mm, 0.001 mm, dia. 60 mm, IP51

DIALTRONIC EASY digital dial gauge 12.5 mm, 0.001 mm, dia. 60 mm, IP51

1033090802 DIALTRONIC EASY digital dial gauge 12.5 mm, 0.001 mm, dia. 60 mm, IP51
Item no: 1033090 802

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • For static measurements
  • Metal housing
  • Large LCD display
  • Display and function keys can be rotated by 270°
  • Functions: Zero position/PRESET, data transfer, mm/in selection, measurement direction selection, automatic or manual standby mode, measured value locking function

Delivery
1x dial gauge with built-in ball measuring insert dia. 3 mm
1x measurement report
Quick-start instructions


Brand: TESA TECHNOLOGY
Length measuring range: 12,5 mm
Max. length measuring range in inches: 0,5 in
Digit increment: 0,001 mm
Digit increment in inches: 0,00005 in
Error limit: 0,004 mm
Data transmission type: Cable
Min./max. measurement force: 0.65-0.9 N
Repeat accuracy: 0,002 mm
IP protection class: IP 51
Dynamic measurement: No
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 01930321

EAN no.: 7630041152463

Product Datasheet
