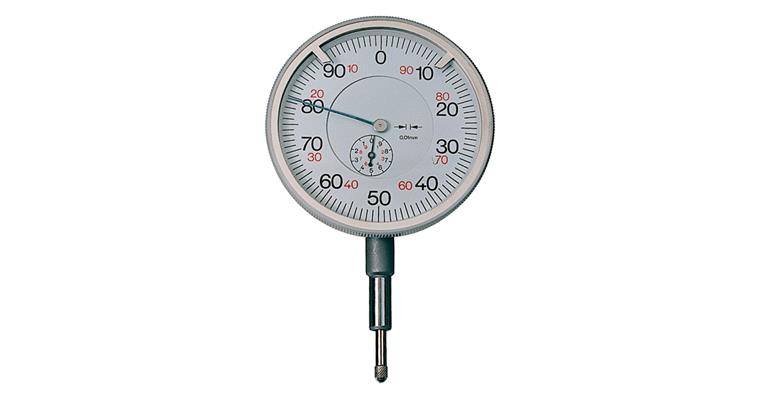

Large dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 80 mm

Large dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 80 mm

Large dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 80 mm
Item no: 1033040 101

Online price:

Still in stock: 3

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 pointers (small pointer for absolute mm display)
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Hot-pressed brass housing, matt chrome-plated
  • Replaceable gauge slides
  • Accuracy according to factory standard

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 10 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 80 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: 0 - not applicable
Shaft length: 30,5 mm
Digit increment: 0,01 mm
Other standard: Company standard
Calibration Group: C

EAN no.: 4024496080946

Product Datasheet
