Dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 58 mm

Dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 58 mm

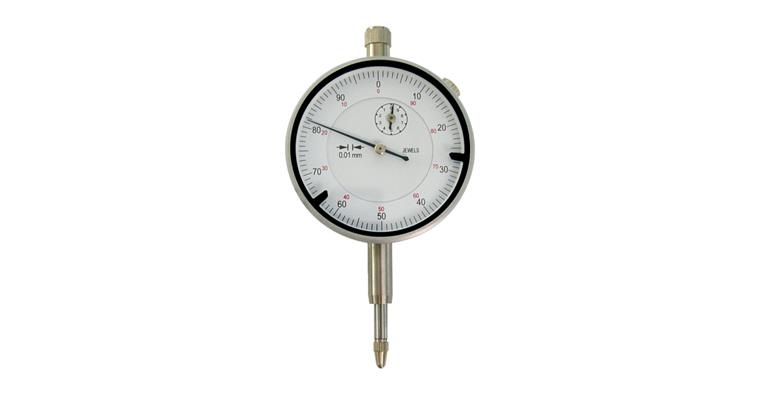

1033009101 Dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 58 mm
Item no: 1033009 101

Online price:

Available for immediate delivery

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Dial with black advancing and red returning numbers
  • 2 pointers (small pointer for absolute mm display)
  • Replaceable gauge slides
  • Clamping shank and lapped measuring pin made of stainless steel

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 10 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 58 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Metal
Rotating housing: Yes
Shaft length: 23 mm
Digit increment: 0,01 mm
DIN: 878

EAN no.: 4024496080823

Product Datasheet
