Messpistolensatz für Innenmessung 50-100mm 844 AS ohne Messuhr

Messpistolensatz für Innenmessung 50-100mm 844 AS ohne Messuhr

Messpistolensatz für Innenmessung 50-100mm 844 AS ohne Messuhr
Item no: 1031906 204

Online price:

Available in 6-8 working days.

Application
Measurement of through-bores, blind holes and centring edges.

Execution
  • Connecting thread for changing the measuring heads
  • Self-centring measuring head with three measuring anvils on the side, offset by 120°
  • Measuring anvils from 12 mm are carbide tipped
  • From 12 mm: Measuring anvils for measurements down to the bottom of the bore
  • From 40 mm: With weight-saving aluminium measuring head

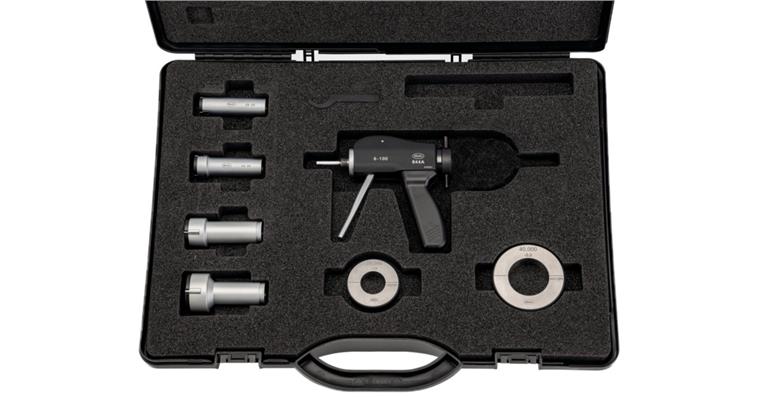

Delivery
Measuring pistol set
Setting rings
Measuring heads
Key for replacing measuring heads
Operating instructions

Notes
without dial gauge

Brand: MAHR
Min./max. length measuring range: 50-100 mm
Composition of set: Messköpfe 50-60 mm | 60-70 mm | 70-85 mm | 85-100 mm
Einstellring 60 mm | 85 mm
Error limit: 0,005 mm
Number of measurement heads: 4 PCS
Number of setting rings: 2 PCS
Other standard: Company standard
Calibration Group: I | AC

Manufacturer part no.: 4487753

EAN no.: 4059192021603

Product Datasheet
