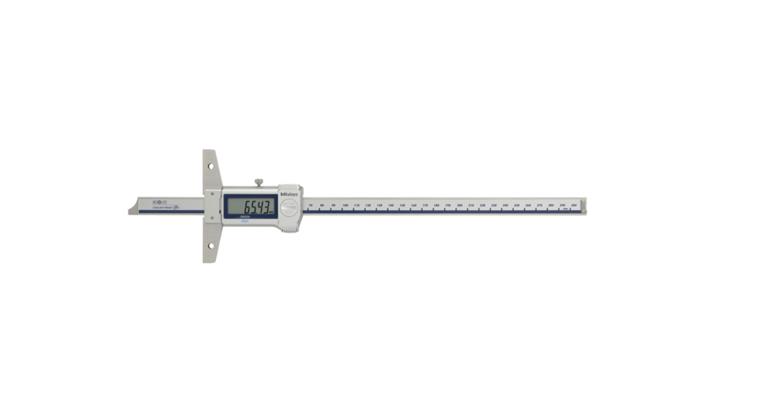

Digital-Tiefenmessschieber 0-300 mm IP67

Digital-Tiefenmessschieber 0-300 mm IP67

Digital-Tiefenmessschieber 0-300 mm IP67
Item no: 1031308 203

Online price:

Available in 11-13 working days.

Application
For measuring bore depths, offsets, widths and distances.

Execution
  • ABSOLUTE system for reliable measurement
  • Hardened measuring bridge and lapped depth measuring surfaces
  • Excellent resistance to water and dust - IP 67
  • Functions: ORIGIN (ABS zero point), automatic switch-off after 20 minutes of inactivity, low voltage alarm, data output

Advantage
Extremely resistant to coolants and lubricants

Delivery
1x box
1x battery


Brand: MITUTOYO
Min./max. length measuring range: 0-300 mm
Digit increment: 0,01 mm
Bridge length x bridge width: 100 x 6.3 mm
Data transmission type: Cable | Bluetooth | Wireless
Error limit: 0,03 mm
Bridge width: 6,3 mm
Bridge length: 100 mm
Interface: Digimatic | USB 2.0 type A | Bluetooth | Integrated Wireless
IP protection class: IP 67
Calibration Group: B
Digit height: 11 mm
Type of locating: With locking screw

Manufacturer part no.: 571-253-20

EAN no.: 4946368846446

Product Datasheet
