Digital-Werkstattmessschieber 0-600 mm Leichtbau

Digital-Werkstattmessschieber 0-600 mm Leichtbau

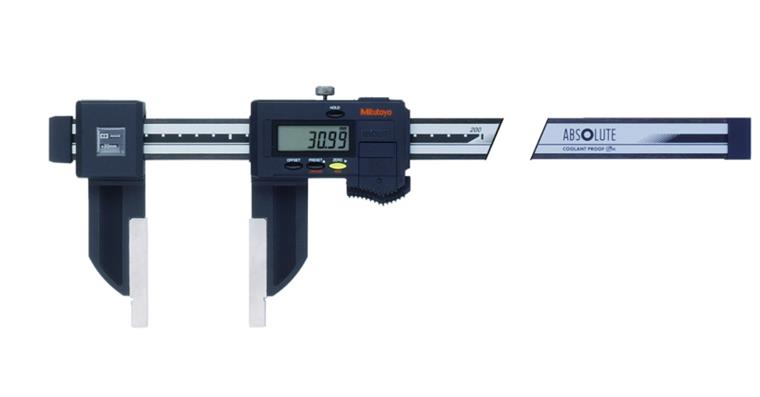

1031126102 Digital-Werkstattmessschieber 0-600 mm Leichtbau
Item no: 1031126 102

Online price:

Available in 11-13 working days.

Application
For measuring external and internal dimensions

Execution
  • Thanks to the super-light composite structure (carbon-fibre-reinforced material), the weight is reduced by up to 50 %
  • ABSOLUTE system for reliable measurement
  • Effortless reading with large display digits
  • OFFSET function for direct reading of internal measurements
  • Funktionen: ORIGIN (ABS Nullpunkt), DATA (Ausgabe mit Kabel) / HOLD, PRESET, Abschaltautomatik, Alarm bei niedriger Spannung, Datenausgabe
  • Functions: ORIGIN (ABS zero point), DATA (output with cable)/HOLD, PRESET, auto switch-off, low voltage alarm, data output

Delivery
1x box
1x battery

Notes
Connecting cable, see art. no. 1035200 601, 602, 608.
Replacement batteries, see art. no. 1039900 101.
Accessories such as measuring arms for measuring hole distances, measuring jaws and holders on request.

Brand: MITUTOYO
Min./max. length measuring range: 0-600 mm
Digit increment: 0,01 mm
Length of jaw: 100 mm
Inner measurement scales: 20 mm
Data transmission type: Cable | Wireless
IP protection class: IP 66
Interface: Digimatic | USB 2.0 type A | Integrated Wireless
Error limit: 0,04 mm
Digit height: 10 mm
Type of locating: With locking screw
Other standard: Company standard
Calibration Group: A

Manufacturer part no.: 552-303-10

EAN no.: 4946368582993

Product Datasheet
