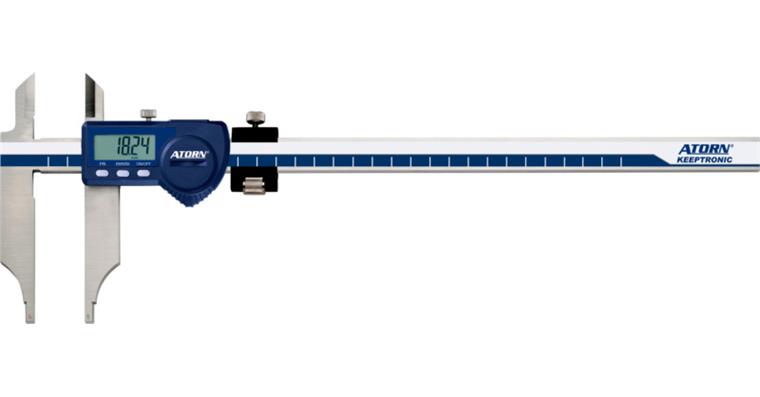

ATORN digital workshop vernier callipers 500 mm, blade tips and fine adjustment

ATORN digital workshop vernier callipers 500 mm, blade tips and fine adjustment

ATORN digital workshop vernier callipers 500 mm, blade tips and fine adjustment
Item no: 1031118 302

Online price:

Available in 13-15 working days.

Application
For measuring external and internal dimensions.

Execution
  • ON/OFF
  • Zero setting at any position
  • mm/inch switch-over
  • Auto off
  • Preset function
  • ABS function
  • Keeptronic System
  • Avec branches biseautées, avec réglage fin

Advantage
  • Key lock to prevent unintentional adjustment
  • Switched on by moving the slider

Delivery
in a wooden case, with battery (1 x 3 V lithium, type CR 2032)

Notes
Connecting cable, see art. no. 1035200 401-403.

Brand: ATORN
Min./max. length measuring range: 0-500 mm
Data transmission type: multiCOM
IP protection class: IP 40
Length of jaw: 125 mm
Measuring tips: Yes
Fine adjustment: Yes
Digit increment: 0,01 mm
Inner measurement scales: 20 mm
Type of locating: With locking screw
Display: Digital
Calibration Group: A
Number of rechargeable batteries/batteries: 1 PCS
Battery designation: 3V CR2032 Lithium
ISO: 13385-1

ATORN-No.: 31059525

EAN no.: 4050293402322

Product Datasheet
