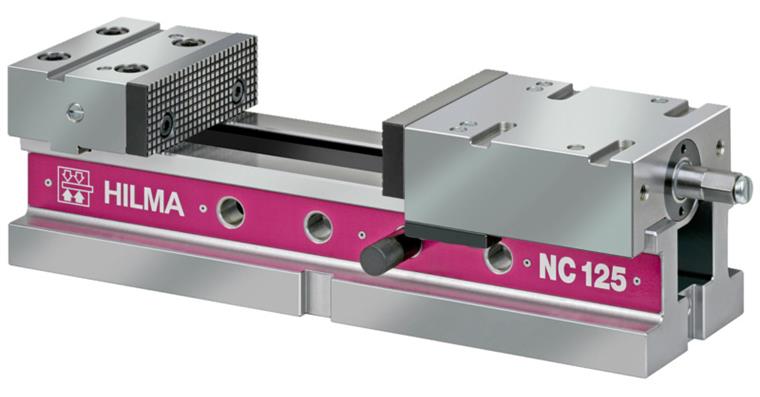

Hydraulic machine vice type NC 125 mech.-hyd. Jaw width 125 mm

Hydraulic machine vice type NC 125 mech.-hyd. Jaw width 125 mm

1027800102 Hydraulic machine vice type NC 125 mech.-hyd. Jaw width 125 mm
Item no: 1027800 102

Online price:

Available in 6-8 working days.

Application
For tool and mould making, jig manufacturing and production.

Execution
  • Mechanically/hydraulically operated
  • Manual clamping with hydraulic power transmission
  • Precise alignment on the machine table using longitudinal and transverse grooves
  • Extension of the clamping range with interchangeable stepped jaws or customer-specific special jaws via grooves and threaded bores on slides and fixed jaws
  • Threaded bores for mounting extra-high clamping jaws as standard
  • Function: When the hand crank is turned, the mechanical/hydraulic clamping jaw is quickly brought to the workpiece via a steep threaded hollow spindle. After contact with the workpiece: Automatic disengagement of the inner pressure spindle. When the hand crank is turned further: Infinitely variable increase in the clamping force up to the maximum. To release the clamping force, the hand crank is turned in the opposite direction

Delivery
With standard clamping jaws, smooth/grooved, and hand crank

Notes
For adjustable clamp sets, see art. no. 1027805. Hydraulically operated design on request.

Brand: ROEMHELD
Jaws width: 125 mm
Jaws height (b*): 45 mm
Jaws thickness (c*): 15 mm
Length (d): 100 mm
Body length (f): 430 mm
Thread dimension (g2): M12
Length 2 (m**): 115 mm
Max. length (L max.): 528 mm
Min./max. clamping width (S1): 0-225 mm
Min./max. clamping width of attachment step jaws (S2): 138-363 mm
Min./max. clamping width of attachment step jaws 3 (S3): 206-431 mm
Width across flats (SW): 17 mm
Tension force: 40 kN
Weight: 31,5 kg

Manufacturer part no.: 93073-0203
