Screw for T-grooves (clamping screw) DIN 787 nominal groove size 16 M16 x 160 mm

Screw for T-grooves (clamping screw) DIN 787 nominal groove size 16 M16 x 160 mm

Screw for T-grooves (clamping screw) DIN 787 nominal groove size 16 M16 x 160 mm
Item no: 1027015 327

Online price:

Available in 6-8 working days.

Execution
  • Forged
  • Tempered
  • T-groove guide broached
  • Rolled thread

Advantage
  • Advantages of the threaded roller:
  • Fibre structure not interrupted
  • Decreased notch sensitivity
  • Very good roughness values on the thread flanks and in the base radius

Delivery
Complete with DIN 787 screw for T-grooves, hexagon nut to DIN 6330B and washer to DIN 6340

Notes
T-groove screws (DIN 787) with other lengths and thread sizes, screws also deliverable without nut and washer and with strength class 12.9 on request.

Brand: AMF
Groove width: 16 mm
Thread dimension (d1): M16
Length excluding head (l3): 160 mm
Thread length (l2): 100 mm
Head height (l4): 9 mm
Length of head (b1): 25 mm
Outer diameter (b2): 15,7 mm
Property class: 8.8
DIN: 787
Design: Forged | Tempered | With nut | With washer

Manufacturer part no.: 8099

EAN no.: 4020772080990

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Screw for T-grooves (clamping screw) DIN 787 nominal groove size 18 M16 x 250 mm
  •
    Screw for T-grooves (clamping screw) DIN 787 nominal groove size 28 M24 x 250 mm
  •
    Screw for T-grooves (clamping screw) DIN 787 nominal groove size 18 M16 x 63 mm
  •
    Screw for T-grooves (clamping screw) DIN 787 nominal groove size 16 M14 x 100 mm
  •
    Screw for T-grooves (clamping screw) DIN 787 nominal groove size 8 M8 x 50 mm
  •
    Screw for T-grooves (clamping screw) DIN 787 nominal groove size 16 M14 x 63 mm
  •
    Screw for T-grooves (clamping screw) DIN 787 nominal groove size 18 M16 x 100 mm
  •

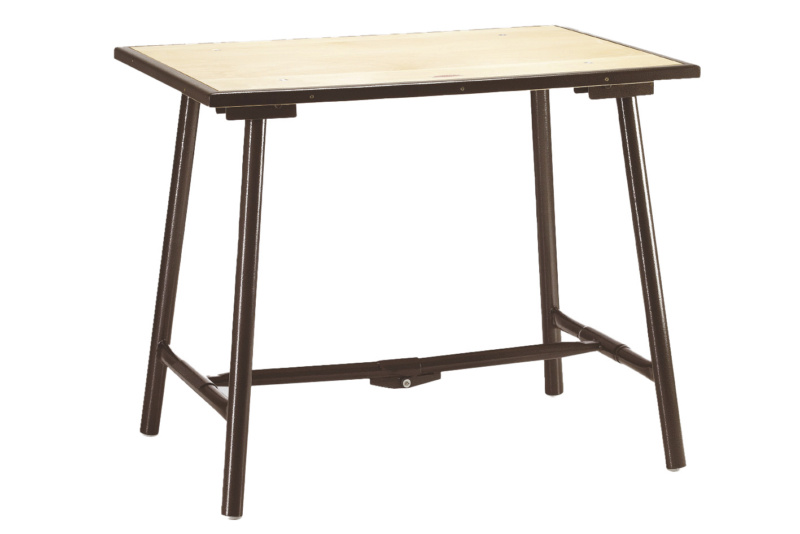

    Folding workbench with very stable laminated wood panel 1000x700x30 mm
  •
