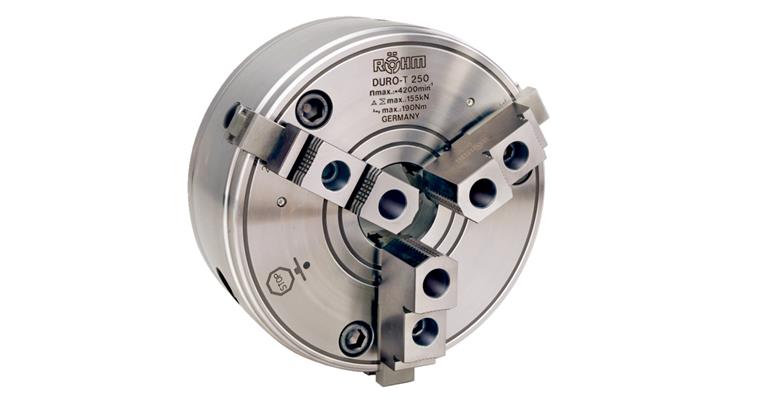

3-jaw tapered rod lathe chuck Duro cyl. adapter DIN 6350 dia. 200 mm

3-jaw tapered rod lathe chuck Duro cyl. adapter DIN 6350 dia. 200 mm

3-jaw tapered rod lathe chuck Duro cyl. adapter DIN 6350 dia. 200 mm
Item no: 1026405 102

Online price:

Available in 8-10 working days.

Application
Optimised for turning applications, which require extremely high clamping forces, maximum concentricity and reliable continuous repeatability.

Execution
  • Grease nipples with very easy access are located at each jaw position
  • Fast and regular lubrication to ensure a long service life
  • For cylindrical centring mount DIN 6350-1
  • Large through-bore
  • Chuck body surface hardened
  • Futterkörper oberflächengehärtet
  • Für zylindrische Zentrieraufnahme DIN 6350-1

Advantage
  • No longer necessary to dismantle the chuck before lubricating the guides
  • With visual jaw lock and jaw quick-change system
  • Higher clamping force
  • Larger aperture
  • Höhere Spannkraft

Delivery
With plain jaws and hard interchangeable jaw grips reversible as turning and drilling jaws

Notes
For replacement jaws, see art. nos. 1026440-1026443.

Brand: RÖHM
Outer diameter (Futter-Ø A): 200 mm
Centring diameter (Zentrier-Ø E): 185 mm
Clearance hole (Durchgangsbohrung C): 52 mm
Pitch circle diameter (Lochkreis-Ø G): 160 mm
Height without jaws (Futterhöhe D): 81 mm
Max. rotation speed: 4600 rpm
Weight: 18,6 kg
DIN: 6350-1
Jaw stroke: 6,8 mm
Length 2 (K): 43 mm
Max. external clamping width: 207 mm
Max. internal clamping width: 214 mm
Min. external clamping width: 7 mm
Min. internal clamping width: 71 mm

Manufacturer part no.: 437491

EAN no.: 4019208227788

Product Datasheet
