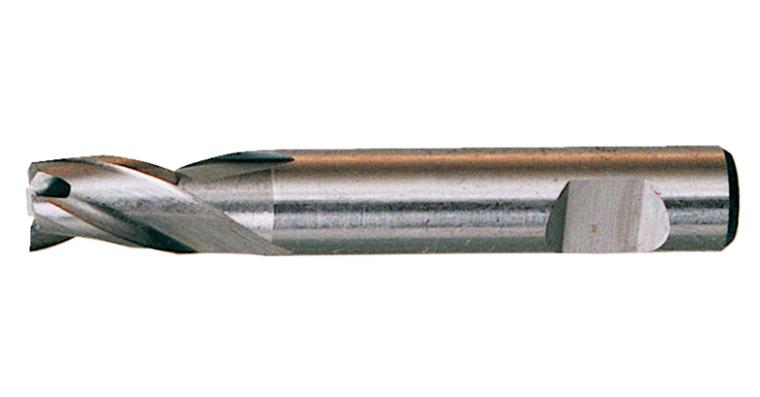

Mini-Fräser zyl./1835 B kurz 3 Schneiden, Zentrumschnitt HSS-E 4,5 mm

Mini-Fräser zyl./1835 B kurz 3 Schneiden, Zentrumschnitt HSS-E 4,5 mm

1016020214 Mini-Fräser zyl./1835 B kurz 3 Schneiden, Zentrumschnitt HSS-E 4,5 mm
Item no: 1016020 214

Online price:

Available in 6-8 working days.

Execution
  • Kurz
  • Rechtsschneidend
  • Rechtsdrall 30°
  • 3 Schneiden
  • Zentrumschnitt
  • Zylinderschaft mit Mitnahmefläche nach DIN 1835 B

Notes
Das Nachschleifen von Fräsern mit kleinem Schneidendurchmesser ist unwirtschaftlich. Es ist daher günstiger, Minifräser bis zur Verschleißgrenze zu benutzen und dann wegzuwerfen. Sie setzen ständig fabrikneue Fräser ein und vermindern ihr Ausschussrisiko.

Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 4,5 mm
Cutting edge length: 7 mm
Length: 38 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 30°
Type: N
Construction length: Extra short
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: d11
Tolerance of shank diameter: h6
