Mitnehmer-Scheibe, Spannkreis-Ø 80, HM-Platten 9,5x3,2, Rechtslauf

Mitnehmer-Scheibe, Spannkreis-Ø 80, HM-Platten 9,5x3,2, Rechtslauf

Mitnehmer-Scheibe, Spannkreis-Ø 80, HM-Platten 9,5x3,2, Rechtslauf
Item no: 1025240 304

Online price:

Available in 8-10 working days.

Application
For driving cylindrical components.

Execution
  • With interchangeable carbide driving plates 9.5 x 3.2 mm
  • Clockwise rotation
  • Max. workpiece hardness 40 HRC

Advantage
Can be used flexibly for different applications

Notes
The driving discs of the new CoAE fit the previous CoA

Brand: RÖHM
Clamping circuit diameter (Spannkreis-Ø S): 80 mm
Min./max. turning range diameter (Drehbereichs-Ø min./max.): 81-160 mm
Bore diameter (Bohrungs-Ø I): 58 mm
Suitable tip diameter (Für Spitzen-Ø Y): 16 mm
Length (Körperlänge R): 24 mm
Direction of rotation: Clockwise rotation
Load force in a horizontal position: 14000 N
Max. turning range diameter: 160 mm
Min. turning range diameter: 81 mm

Manufacturer part no.: 1341641

EAN no.: 4019208501536

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN thread mould HSSE TiN DIN 376 M16 ISO 2 with lubrication grooves
    177,16 €
  • ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M16
    195,22 €
  • Mitnehmer-Scheibe, Spannkreis-Ø 40, HM-Platten 9,5x3,2, Rechtslauf
  •
    Mitnehmer-Scheibe, Spannkreis-Ø 50, HM-Platten 9,5x3,2, Linkslauf
  •
    Mitnehmer-Scheibe, Spannkreis-Ø 40, HM-Platten 9,5x3,2,Rechts- Linkslauf
  •
    Mitnehmer-Scheibe, Spannkreis-Ø 50, HM-Platten 9,5x3,2, Rechts-Linkslauf
    154,00 €
  • Mitnehmer-Scheibe, Spannkreis-Ø 63, HM-Platten 9,5x3,2, Rechts-Linkslauf
  •
    ATORN corundum abrasive fabric roll (AO) in tear-off box G40 25 mm x 50 m
  •
    ATORN corundum abrasive fabric roll (AO) in tear-off box G60 25 mm x 50 m
  •
    3/8 Zoll Innen-6kant Schraubendreher-Einsatz Kugelkopf SW 10 mm
  •
    3/4 inch hex impact screwdriver bit CV special steel long AF 24 mm
  •

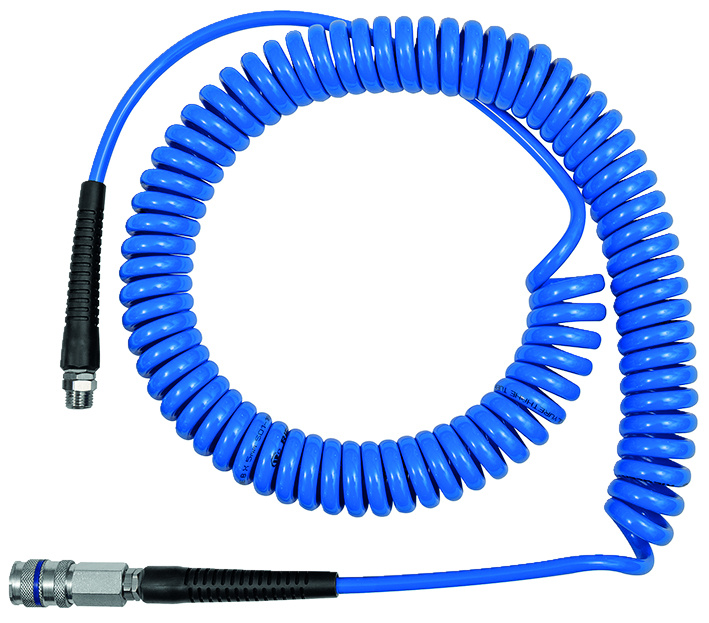

    Spiral hose set PU with standard coupling NW 7.8 dia. 8X5, length 3.0 m
