Mitlaufende Zentrierspitze 60°, MK 6, Größe 114, verlängerte Laufspitze

Mitlaufende Zentrierspitze 60°, MK 6, Größe 114, verlängerte Laufspitze

Mitlaufende Zentrierspitze 60°, MK 6, Größe 114, verlängerte Laufspitze
Item no: 1024205 105

Online price:

Will be ordered for you

Application
For fine turning, roughing and copying on lathes.

Execution
  • With extended revolving live centre 60°/30°
  • Body and moving point are hardened and ground
  • Moving point can be reground multiple times

Advantage
  • Special seal prevents the ingress of dirt and coolant.
  • Precision roller bearings ensure a high level of concentricity
  • Maintenance-free owing to permanent lubrication


Brand: RÖHM

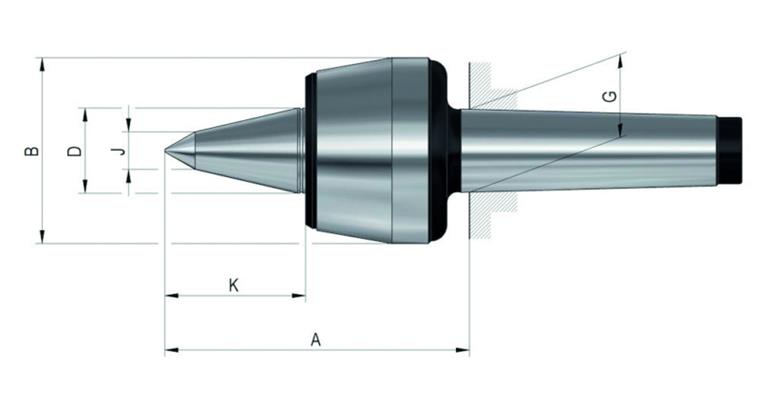

Morse taper size: MK 6
Max. tip diameter (Spitzen-Ø D): 50 mm
Tip diameter (Spitzen-Ø J): 18 mm
Diameter of housing (Gehäuse-Ø B): 102,5 mm
Length of tip (Spitzenlänge K): 78 mm
Programming size (Programmiermaß A): 172,5 mm
Adapter diameter (Aufnahme-Ø G): 63,348 mm
Concentricity tolerance: 0,01 mm
Max. workpiece weight: 2500 kg
Max. rotation speed: 2600 rpm
Taper shank size: 6
Angle of the tip: 60 Degree
Type description: 114 HVL

Manufacturer part no.: 58673

EAN no.: 4019208017099
