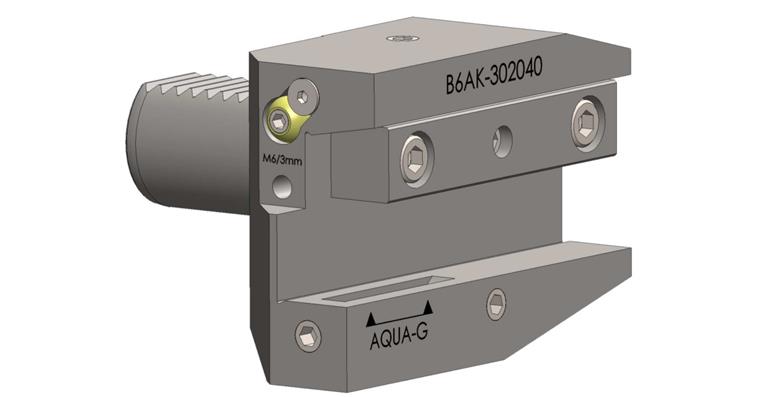

VDI HOLDER DIN 69880 B6AK-40X25X44

VDI HOLDER DIN 69880 B6AK-40X25X44

VDI HOLDER DIN 69880 B6AK-40X25X44
Item no: 1021950 161

Online price:

Available in 8-10 working days.

Application
For clamping standard and internally cooled insert holders

Execution
  • VDI holder
  • With grub screw for setting the cooling only on the insert holder
  • Clamping wedge, increased clamping force, side operation

Advantage
  • Cooling via ball nozzle and/or insert holder
  • External cooling with G1/8 hose
  • Coolant tightness up to 80 bar


Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d1): 40 mm
Shaft height (h1): 25 mm
Overall width (l2): 44 mm
Overall length (b1): 118 mm
Length 2 (b2): 75,5 mm
Length 3 (b3): 12,5 mm
Width 2 (l1): 22 mm
Height (h3): 35 mm
Height 2 (h4): 30 mm
Height 3 (h5): 32,5 mm
Height 4 (h6): 48 mm

EAN no.: 4024496149353
