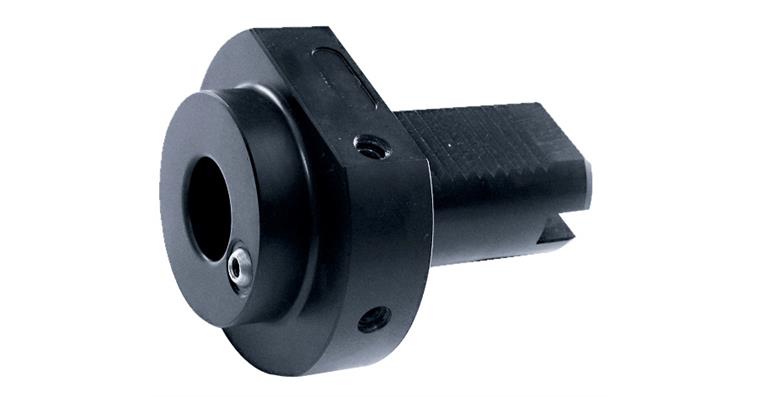

Morse taper mount dia. 30 mm for MK1 a. flat tangs DIN 228 B, shape F1 DIN 69880

Versions

Item no: 1021930 203

Online price:

Catalogue price: You save:

Available in 8-10 working days.

Min. order quantity: 1

Application
For mounting tools with an MK shank.

Execution

Type F1, axial
20MnCr5 hardened to 60 +/- 2 HRC
Completely burnished and all functional surfaces ground
With ball spray nozzle and threaded connector for tube fittings

Brand: LIZZARD
VDI mount diameter (VDI Aufnahmedurchmesser d): 30 mm
Morse taper size: MK 1
Projecting length (l): 25 mm
Outer diameter (D1): 52 mm
Collar diameter (D): 68 mm
Height (h): 28 mm
Coolant supply: External

EAN no.: 4024496066674

Product Datasheet
