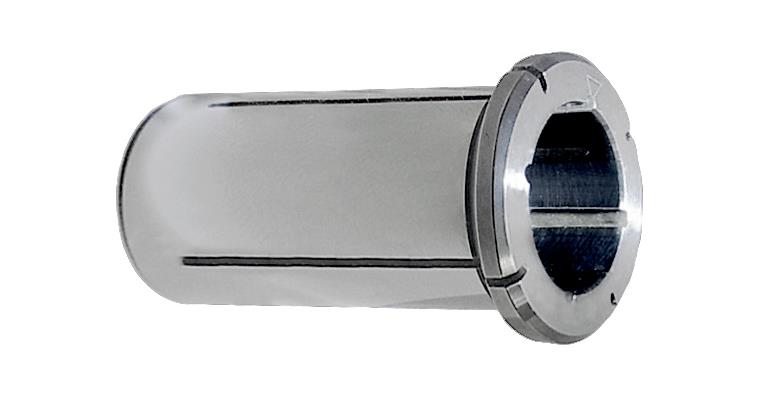

ATORN reducing sleeve dia. 20 mm/dia. 6 mm with coolant bores

ATORN reducing sleeve dia. 20 mm/dia. 6 mm with coolant bores

ATORN reducing sleeve dia. 20 mm/dia. 6 mm with coolant bores
Item no: 1021846 308

Online price:

Available in 5-7 working days.

Application
For reducing the clamping diameter. For drilling, reaming, milling and sharpening tools.

Execution
  • Slotted and polished
  • Concentricity tolerance 3 µm
  • Concentricity tolerance 3µm

Delivery
1x reducing sleeve with coolant bores

Notes
Caution: Never clamp without a tool - the reducing sleeve will be damaged.

Brand: ATORN
Chuck clamping diameter (Futter-Spanndurchmesser d1): 20 mm
Clamping diameter (Spanndurchmesser d): 6 mm
Collar diameter (Bunddurchmesser d2): 25 mm
Insertion depth (Einstecktiefe l2): 36 mm
Max. insert depth (Einsatztiefe l): 50 mm
Length (Länge L1): 54 mm
Coolant supply: KKB

ATORN-No.: 21045103

EAN no.: 4050293436778
