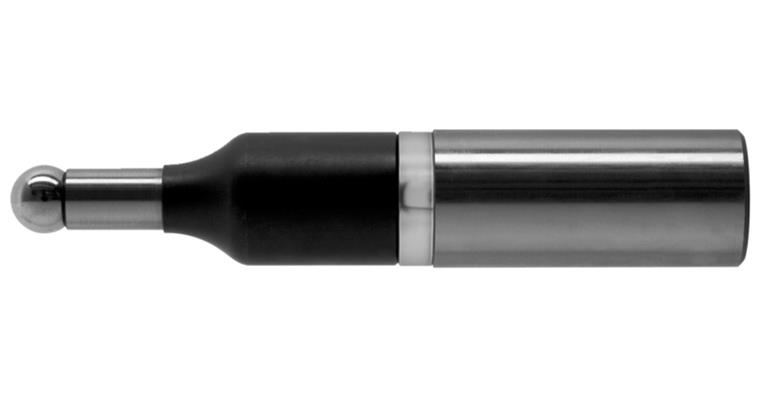

Electrical edge finder type TP 30 acc. 0.01mm shank dia. 20 H6 mm ball dia. 10mm

Electrical edge finder type TP 30 acc. 0.01mm shank dia. 20 H6 mm ball dia. 10mm

1021772102 Electrical edge finder type TP 30 acc. 0.01mm shank dia. 20 H6 mm ball dia. 10mm
Item no: 1021772 102

Online price:

Still in stock: 6

Application
For determining the spindle centre in relation to the workpiece. For internal and external centring.

Execution
  • With all-round illuminated display
  • The ball is spring-mounted and pushes away when passing the reference edge

Delivery
With battery

Notes
For replacement batteries, see art. no. 1039900 215.

Brand: HHW
Sensor design: 3-D
Clamp in shank diameter: 20 mm
Tool holding device: BT 30
Probe head diameter: 10 mm
Housing width: 49 mm
Clamp in length (Einspannlänge L1): 50 mm
Length (Länge L): 108 mm
Sensor insert length: 27 mm
IP protection class: IP 67

EAN no.: 4024496064236

Product Datasheet
