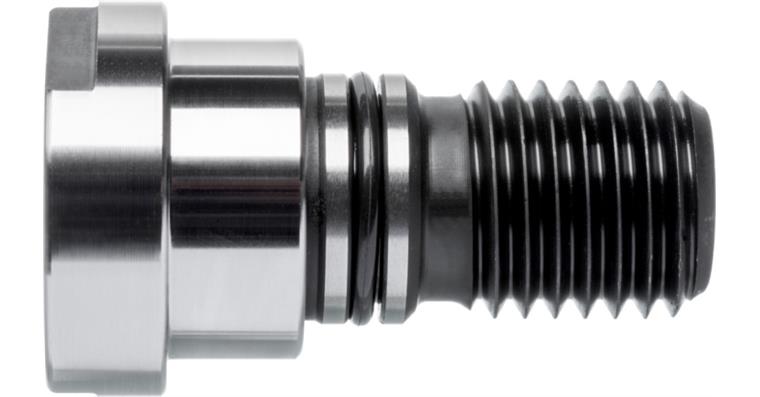

ATORN pull stud SK50 OTT ring groove M24 with hole 11.5 mm

ATORN pull stud SK50 OTT ring groove M24 with hole 11.5 mm

1021736304 ATORN pull stud SK50 OTT ring groove M24 with hole 11.5 mm
Item no: 1021736 304

Online price:

Available for immediate delivery

Application
For screwing into tool holders. They differ depending on the machine and spindle type and are used to fix the holders in the machine spindle.

Delivery
1x OTT SK pull stud with radial groove

Notes
Further versions available on request (specification of machine types required).

Brand: ATORN
Suitable for tool holding device: SK 50
Design: Without O-ring
Outer diameter (D1): 32 mm
Bolt diameter (D2): 25 mm
Diameter (D): 39,60 mm
Length (L): 65,10 mm
Coolant supply: Yes
Angle (α/ A): 90 Degree
Length of tenon (L1): 25,10 mm

ATORN-No.: 20800018

EAN no.: 4050293200867

Product Datasheet
