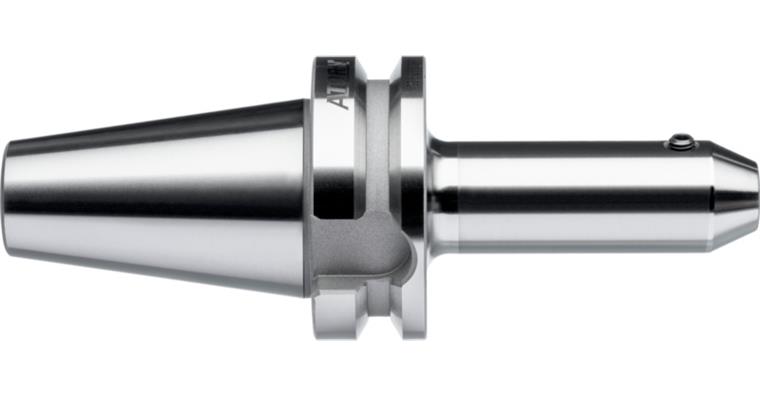

ATORN surface chuck (Weldon) BT40 (ISO 7388-2) dia. 8 mm A=160 mm

ATORN surface chuck (Weldon) BT40 (ISO 7388-2) dia. 8 mm A=160 mm

ATORN surface chuck (Weldon) BT40 (ISO 7388-2) dia. 8 mm A=160 mm
Item no: 1021633 258

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shank and clamping surface in accordance with DIN 1835 B.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Delivery
1x BT40 surface chuck (Weldon) (ISO 7388-2

Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.

Brand: ATORN
Tool holding device: BT 40
Form: JD
Clamping diameter (d): 8 mm
Projecting length (A): 160 mm
Outer diameter (D): 28 mm
Length (L): 133 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm
Thread dimension (g / G): M8

ATORN-No.: 22660397

EAN no.: 4050293708127

Product Datasheet
