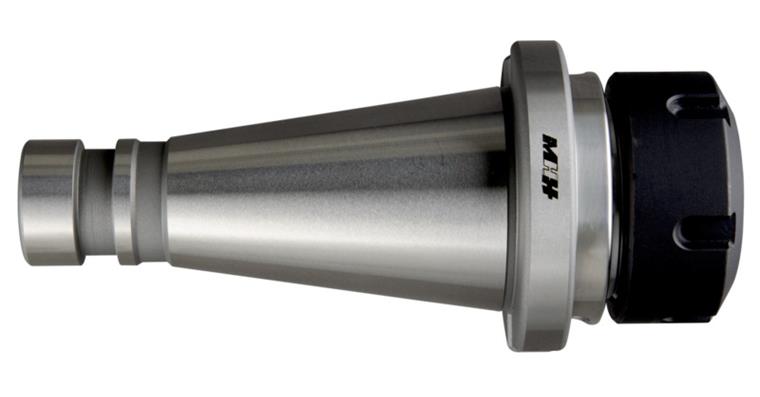

Collet chuck type ER DIN 2080 A SK30/12 2-20 mm

Collet chuck type ER DIN 2080 A SK30/12 2-20 mm

Collet chuck type ER DIN 2080 A SK30/12 2-20 mm
Item no: 1021511 102

Online price:

Still in stock: 8

Application
For machine tools with manual tool change.
For tools with straight shanks with or without external clamping thread.

Execution
  • Type ER
  • Steep taper with SK 40 inner clamping thread and ring groove
  • Pressure collet for tool mounting
  • Short, strong design
  • Concentricity deviation between the taper and internal taper = 0.003 mm
  • Union nut, standard design
  • Case-hardening steel, functional surfaces hardened and ground
  • Collets with double taper, slotted on both sides and extraction groove for easy release and replacement of the jaws
  • Taper angle tolerance according to AT 3


Brand: LIZZARD
Tool holding device: SK 30
Collet type: ER 32 (470 E)
Min./max. clamping range: 2.0-20.0 mm
Projecting length (A): 50,0 mm
Outer diameter (D): 50,0 mm
Balancing quality: G 6,3 at 7000 rpm
DIN: 2080
Construction length: Short
Max. concentricity: 0,003 mm
Standard shank design: DIN 2080
Tightening thread: M12
Tool holding device type: ER-Collet chuck

EAN no.: 4024496056224

Product Datasheet
