ATORN screw tap HSSE C 376 15° M12 1.75 mm ISO2 S 2.5xD CNC N

ATORN screw tap HSSE C 376 15° M12 1.75 mm ISO2 S 2.5xD CNC N

ATORN screw tap HSSE C 376 15° M12 1.75 mm ISO2 S 2.5xD CNC N
Item no: 1014445 112

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC or conventional machines in through holes in the non-ferrous metals material group.

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • innovative cutting geometry with interrupted thread reduces torque, improves lubricant distribution and ensures extremely good process reliability and chip removal
  • specialised application with optimised chip geometry, for use in non-ferrous metals with adhesive or lubricating properties


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,75 mm
Twist angle: 15° (right)
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,2 mm
Type: N MAX Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479470

EAN no.: 4050293189636

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

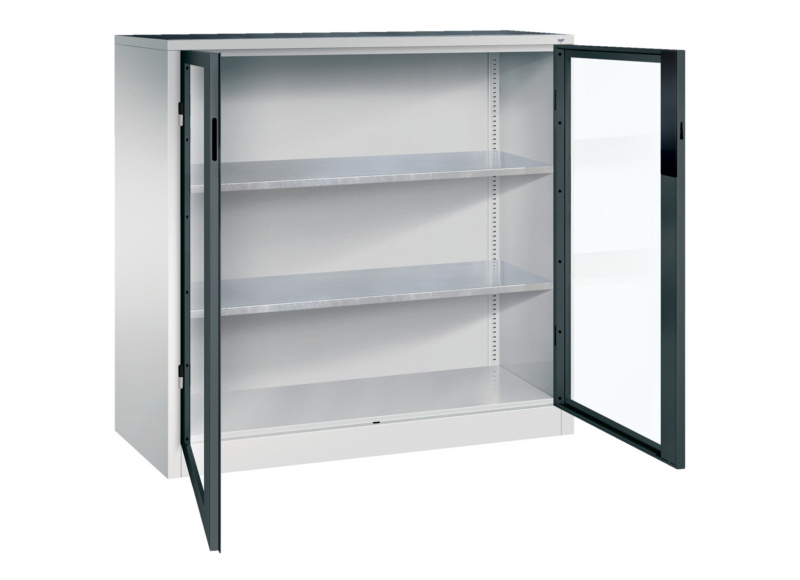

  • Storage cab. w/ doors w/ view. wind. HxWxD 1200x1200x500mm 2 shel. RAL 7035/7016
  •
    ATORN screw tap HSSE C 376 40° M10 1.5 mm ISO2 S 2.5xD CNC P
  •
    Digital universal vernier calipers Multimar 25 EWR measuring range 300 mm
  •
    ATORN screw tap HSSE C 371 15° M10 1.5 mm ISO2 S 2.5xD CNC N
  •
    Maschinen-Gewindebohrer Rekord 2B-Z-PM-GLT-1 M14x1,5-6HX
  •
    Digital universal vernier calipers Multimar 25 EWR measuring range 600 mm
  •
    ATORN carbide reamer, 7-8°, 32.0 mm, H7x317x77 mm, MK shank, DIN 8094, shape B
  •

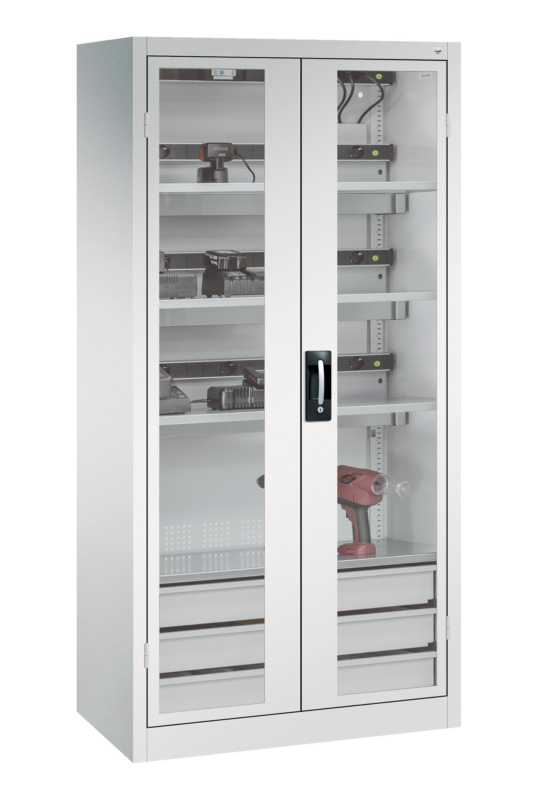

    Akku-Ladeschrank Acurado, 15 Steckdosen Sichtfenstertüren 1950x930x500 7035/7035
  •
    ATORN screw tap HSSE C 371 15° M8 1.25 mm ISO2 S 2.5xD CNC N
  •
    Toothed ring drill chuck DIN 6349 type Prima threaded chuck 1/2 Z x 20 0.8-10 mm
  •

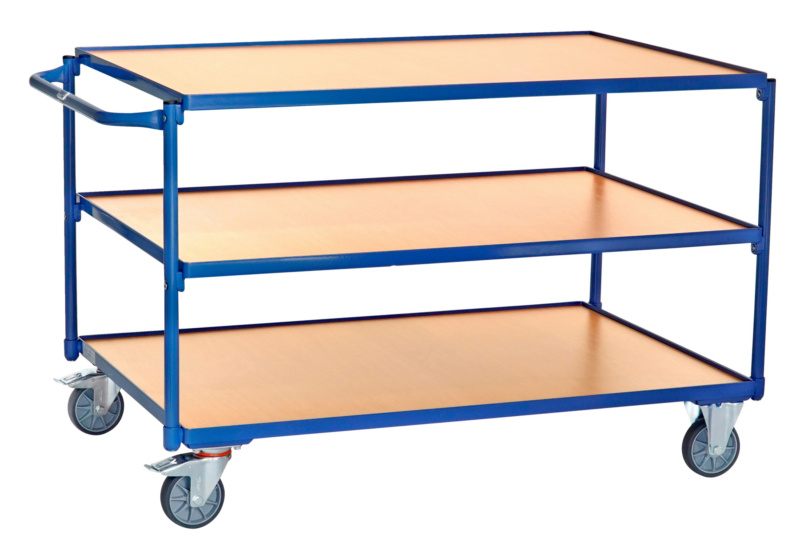

    Table trolley load surf. size 1200X800 mm load capacity 300 kg 3 shelves
  •
