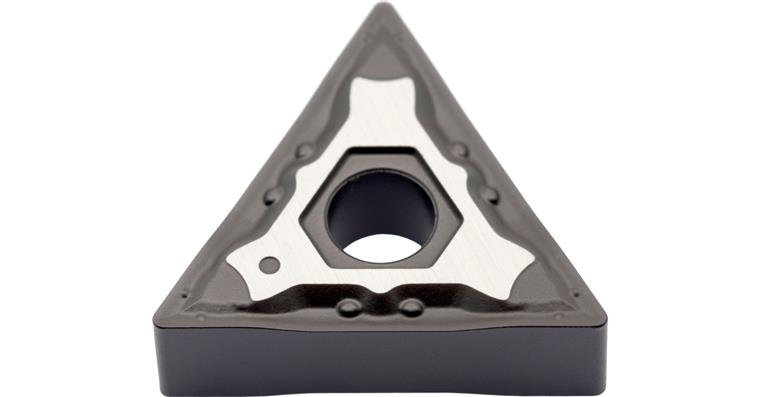

ATORN carbide indexable insert TNMG 160404-MP5 ACP25T

ATORN carbide indexable insert TNMG 160404-MP5 ACP25T

ATORN carbide indexable insert TNMG 160404-MP5 ACP25T
Item no: 1019422 110

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range in moderate cutting conditions

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: TNMG 160404
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 0.25-4.5 mm
f min./max.: 0.12-0.4 mm/U
Materials group: K (secondary application) | P (primary application) | M (secondary application)
f min.: 0,12 mm/r
max. f: 0,4 mm/r
max. ap: 4,5 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP5
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370031

EAN no.: 4050293564440

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN indexable insert LNEX 100605 PNR-MA HW4310
  • ATORN cemented carbide indexable insert VCGT 110302-MN5 AWN15T

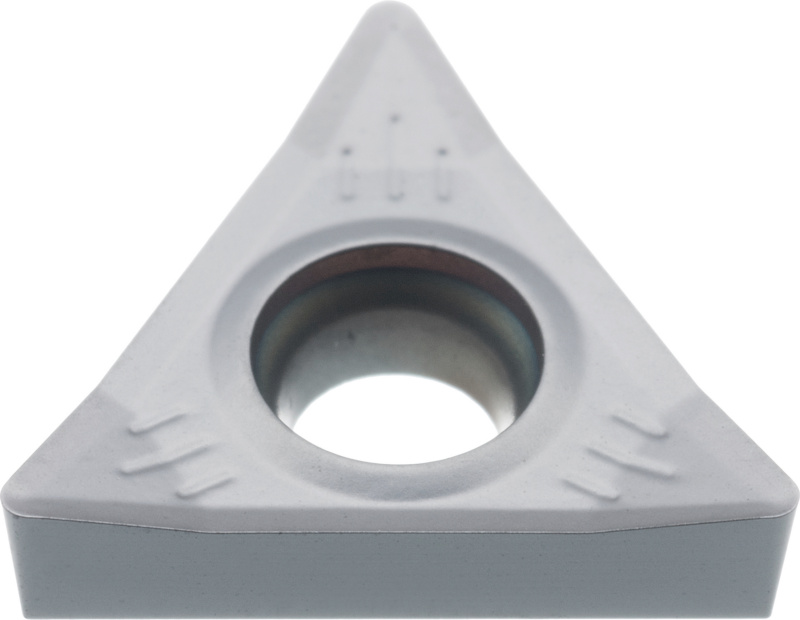

  • ATORN cemented carbide indexable insert TCGT 110204-MN5 APN15T
