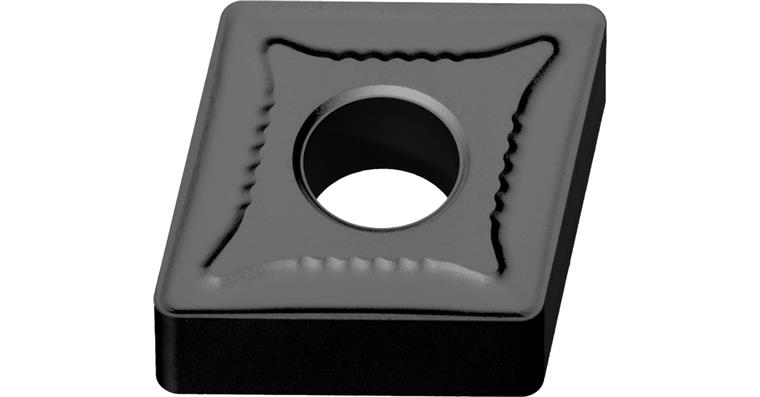

Indexable insert CNMG 120412 roughing RM HC7820

Indexable insert CNMG 120412 roughing RM HC7820

Indexable insert CNMG 120412 roughing RM HC7820
Item no: 1018555 214

Online price:

Available for immediate delivery

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 12
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820
ISO-Code Rotating: CNMG 120412
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 1.2-5 mm
f min./max.: 0.22-0.4 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,22 mm/r
max. f: 0,4 mm/r
max. ap: 5 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 80-220 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875191

EAN no.: 4066107005948

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN test pin RSB TC1 10.56 mm x 70 mm
    28,15 €
  • ATORN test pin RSB TC1 10.76 mm x 70 mm
    28,15 €
  • ATORN test pin RSB TC1 10.88 mm x 70 mm
    28,15 €
  • ATORN test pin RSB TC1 11.25 mm x 70 mm
    28,15 €
  • ATORN test pin RSB TC1 11.58 mm x 70 mm
    28,15 €
  • ATORN test pin RSB TC1 11.86 mm x 70 mm
    28,15 €
  • Indexable milling insert TNGX 100404FR-FA:HF7
  •
    Drill head for boring bar 18247 shape g grade F 3 for cat. no. 18247
    188,10 €

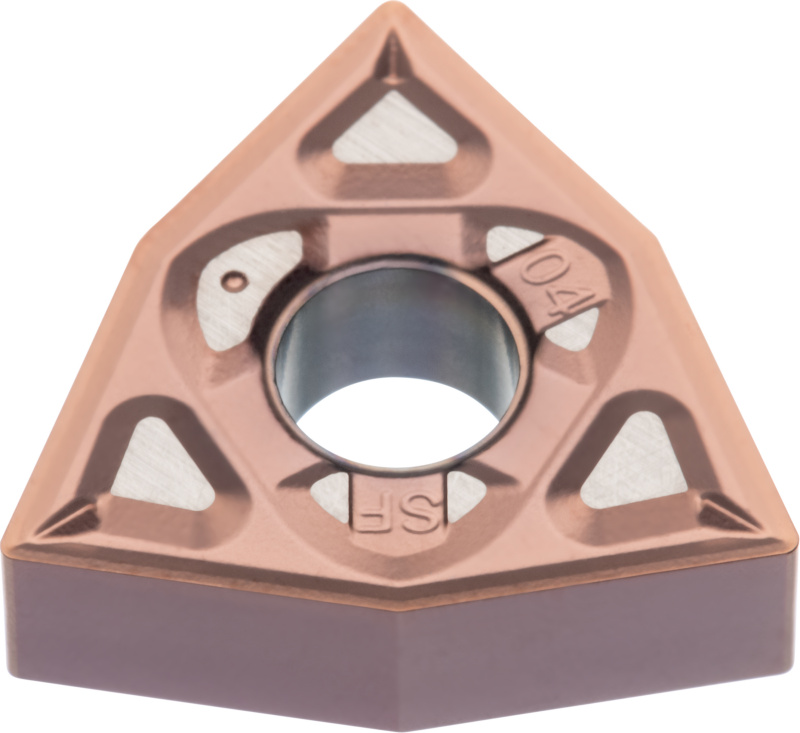

  • ATORN indexable insert WNMG 060404-FM1 APM20T-1
    7,86 €

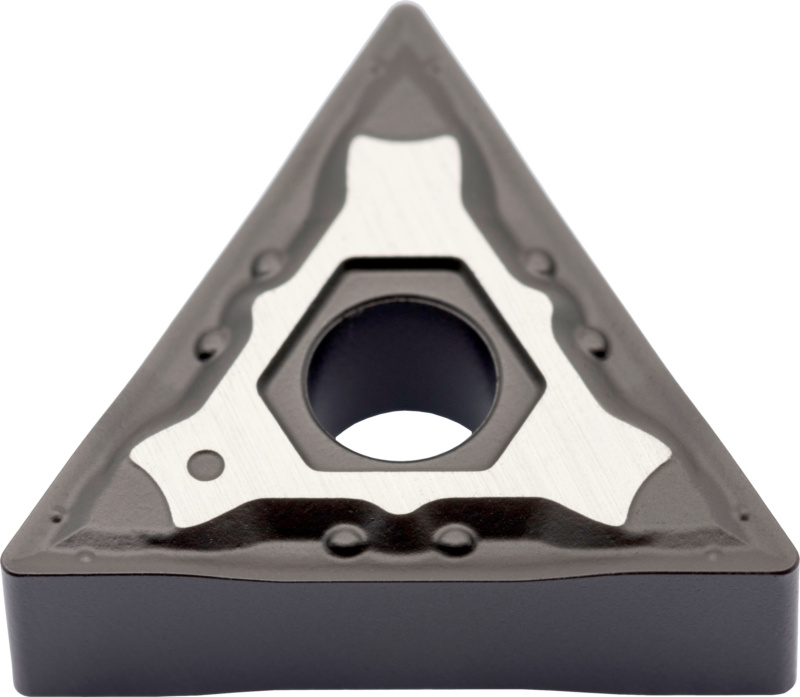

  • ATORN carbide indexable insert TNMG 160404-MP5 ACP25T
  •
