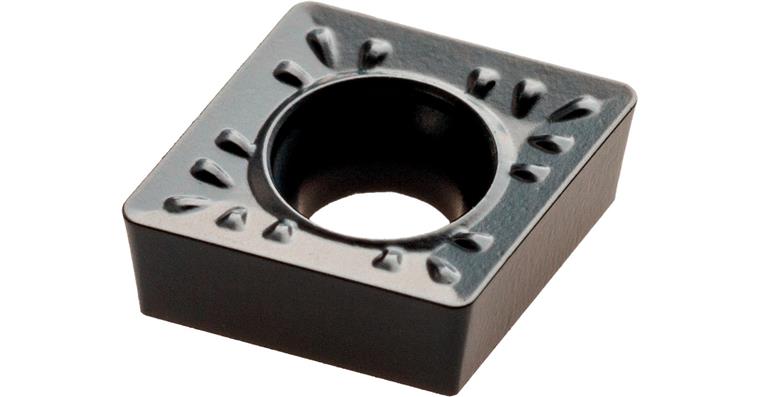

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: K
Machining conditions for indexable insert: Medium
Carbide type ISO: K20
Carbide type: ACK20T
ISO-Code Rotating: CCMT 060204
Material to be processed: Cast metal | Steel
min./max. ap: 0.5-3.0 mm
f min./max.: 0.2-0.4 mm/U
Materials group: K (primary application) | P (secondary application)
f min.: 0,2 mm/r
max. f: 0,4 mm/r
max. ap: 3,0 mm
min. ap: 0,5 mm
Supply type: Medium finishing
Chip breaker code: MK
Min./max. Vc in steel: 200-340 m/min
Min./max. Vc in cast iron: 150-400 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370770

EAN no.: 4050293729252

Product Datasheet
