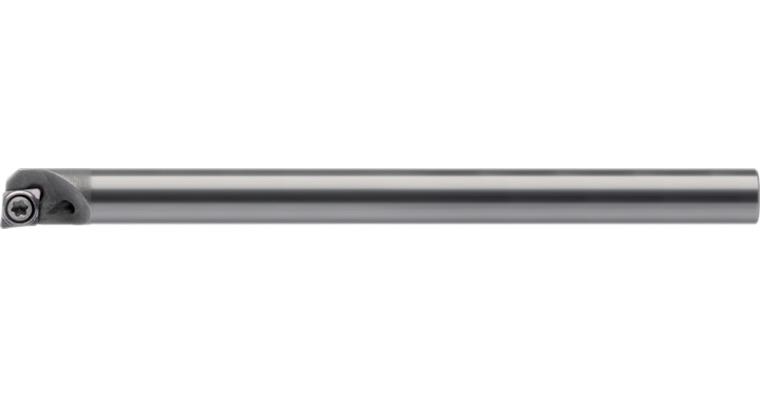

ATORN SCLD boring bar, steel, positive, left, A 04E SCLD R/L 04

ATORN SCLD boring bar, steel, positive, left, A 04E SCLD R/L 04

ATORN SCLD boring bar, steel, positive, left, A 04E SCLD R/L 04
Item no: 1018479 111

Online price:

Available in 4-6 working days.

Application
For face and longitudinal turning with CD indexable insert, 80°.

Execution
Precision-manufactured boring bar, steel, with internal cooling, type C, pitch angle 95°, tip angle 80°, clearance angle 7°

Advantage
  • Universal use for face and longitudinal turning
  • Positive geometry for the body ensures low cutting forces


Brand: ATORN
ISO name: A 04E SCLD R/L 04
Min. bore diameter (D min.): 4,8 mm
Shank diameter (d): 4 mm
Cutting edge height (h1): 3,0 mm
Length (l1): 70 mm
Clamping surface height (h): 4 mm
Programming size (f): 2,4 mm
Suitable for indexable inserts (ISO): CD.. 0401
Tool design: Left
DIN: 8024

ATORN-No.: 12230049

EAN no.: 4050293390438

Product Datasheet
