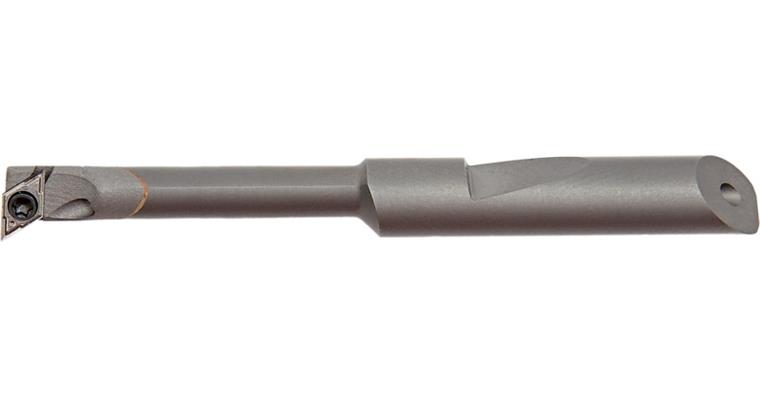

ATORN boring bar E0408 SDUCL 04 AX

ATORN boring bar E0408 SDUCL 04 AX

ATORN boring bar E0408 SDUCL 04 AX
Item no: 1018477 118

Online price:

Available in 5-7 working days.

Application
For longitudinal and copy turning with DC indexable insert 55°

Execution
precision-manufactured solid carbide boring bar, with inner cooling, D type, 93.5° pitch angle, 55° tip angle, 7° clearance angle

Advantage
  • slim contour, optimised for copy turning work
  • Positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: E0408-SDUC R/L 04-AX
Min. bore diameter (D min.): 5,6 mm
Shank diameter (d): 8 mm
Clearance length (l2): 26 mm
Length (l1): 57 mm
Programming size (f): 3 mm
Plate height (f1): 1,5 mm
Suitable for indexable inserts (ISO): DC.. 04..
Tool design: Left

ATORN-No.: 12232797

EAN no.: 4050293692457

Product Datasheet
