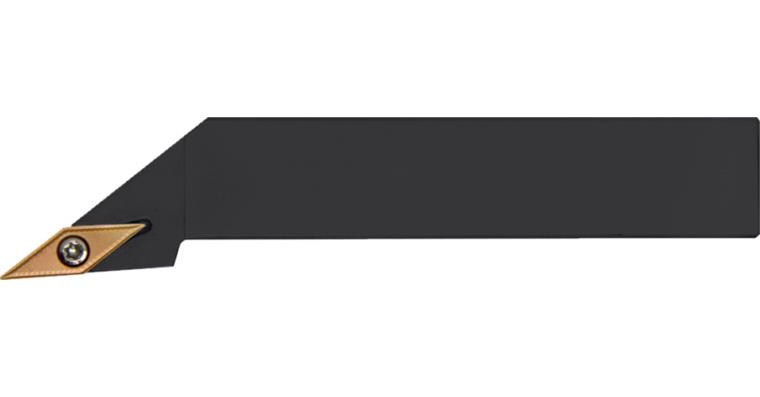

Insert holder SVJBL 2020 K16 left

Insert holder SVJBL 2020 K16 left

Insert holder SVJBL 2020 K16 left
Item no: 1018421 102

Online price:

Available in 6-8 working days.

Application
For indexable inserts VB..

Execution
Angle of attack 93°


Brand: HHW
Shaft height (h=h1=b): 20 mm
Shank width (b): 20 mm
Length (l1): 125 mm
Length of head (l2): 36 mm
Suitable for indexable inserts (ISO): VB.. 1604..
Tool design: Left
Clearance angle: 5 Degree
Cutting edge length: 16 mm
DIN: 4983
Direction of clearance angle: Positive
Grip system: S
Setting angle: 93 Degree
Shape of indexable insert ISO: V

EAN no.: 4024496047130

Product Datasheet
