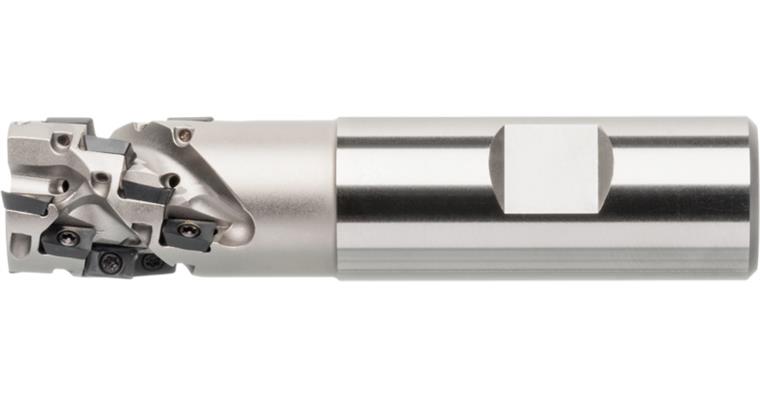

ATORN long edge milling cutter 90° with shank, diameter 16.0 mm T2

ATORN long edge milling cutter 90° with shank, diameter 16.0 mm T2

ATORN long edge milling cutter 90° with shank, diameter 16.0 mm T2
Item no: 1017500 130

Online price:

Available in 5-7 working days.

Application
For universal use in all materials for rough cutting.

Execution
  • With Weldon shank
  • Wear-resistant, nickel-plated version
  • With internal cooling
  • Clamping screw tightening torque (indexable insert) M1.8 = 0.7 Nm

Notes
Slight recessing cannot be avoided on multi-row milling tools.

Brand: ATORN
Cutting edge diameter (D): 16 mm
Clearance length (L2): 19 mm
Length (L1): 80 mm
Shank diameter (d): 16 mm
max. ap: 19 mm
Number of cutting edges: 2 PCS
Number of cutting inserts (WSP Gesamt): 8 PCS

ATORN-No.: 12230407

EAN no.: 4050293534931

Product Datasheet
