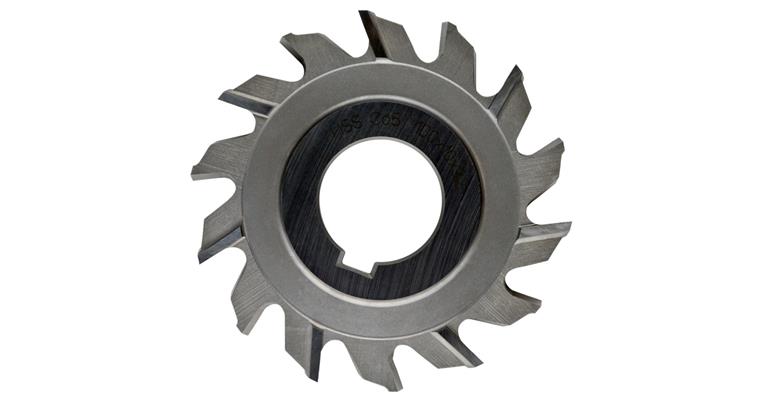

Disc milling cutter DIN 885 A type N HSS-E 80x16 mm

Disc milling cutter DIN 885 A type N HSS-E 80x16 mm

Disc milling cutter DIN 885 A type N HSS-E 80x16 mm
Item no: 1017241 216

Online price:

Available in 11-13 working days.

Application
For normally machinable materials of medium hardness up to approx. 1000 N/mm² strength.

Execution
  • Cuts on three sides
  • Cross-toothed
  • With longitudinal groove according to DIN 138


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter (d1 js16): 80 mm
Width of cutting edge (d2 h7): 16 mm
Bore diameter (b k11): 27 mm
Number of cutting edges (Z): 14 PCS
Type: N
Coolant supply: External
Tolerance of cutting edge diameter: js16
Tolerance of cutting edge width: k11
Tolerance of hole diameter: H7

EAN no.: 4024496042326
