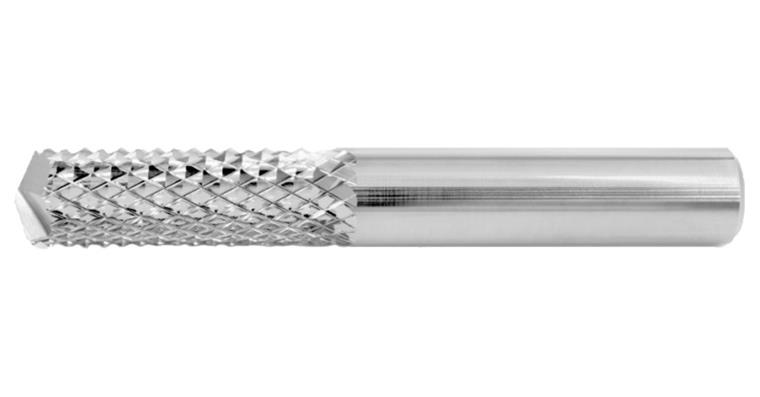

VHM HSC Schaftfräser mit Bohrspitze Verzahnung fein DIN 6535 HA Ø 5,0 mm

VHM HSC Schaftfräser mit Bohrspitze Verzahnung fein DIN 6535 HA Ø 5,0 mm

VHM HSC Schaftfräser mit Bohrspitze Verzahnung fein DIN 6535 HA Ø 5,0 mm
Item no: 1016926 107

Online price:

Still in stock: 3

Application
Für die Bearbeitung von Faserkunststoffen mit hohem Faseranteil.

Execution
  • Verzahnung fein
  • Mit Pyramiden-Kreuzverzahnung mit extrem scharfen Schneidkanten
  • Mit 135°-Bohrspitze zum Bohren und Besäumen
  • Oberfläche poliert

Advantage
Für eine Vielzahl von Materialien einsetzbar


Brand: ATORN
Material to be processed: Plastic composite material
Cutting edge diameter: 5 mm
Cutting edge length: 16 mm
Length: 50 mm
Shank diameter: 5 mm
Twist angle: 30°
Center cutting: Yes
Type: Verzahnung fein
Construction length: Normal
Cutting direction: Right-hand cutting

EAN no.: 4050293639667
