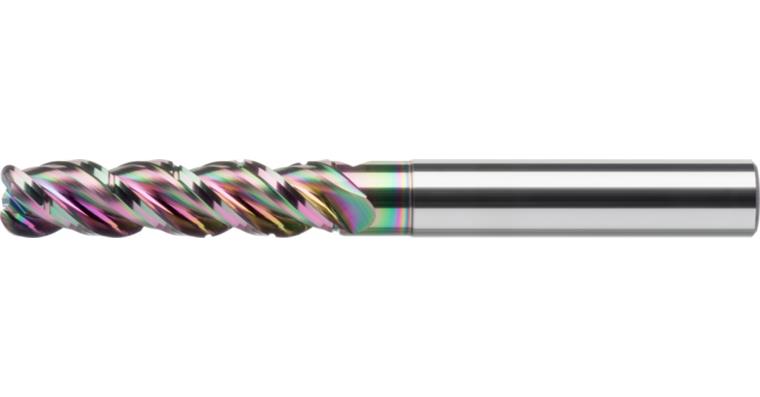

ATORN SC torus mill. cutt. w/ HA shaft diameter 6.0 x 25 x 71 mm T=3 radius 0.5

Versions

Item no: 1016895 101

Online price:

Catalogue price: You save:

Still in stock: 6

Min. order quantity: 1

Application
HPC/TVC torus milling cutter with uneven pitch for roughing and finishing of non-ferrous metals with maximum machining performance.

Execution

Solid carbide ultra-fine grain
Straight shank in line with DIN 6535 HA
ULTRA-N PRO-coated
Radius tolerance = +/- 0.01 mm
Defined edge rounding of the cutting edge
centre cutting
with clearance

Advantage

Ultra-smooth coating thickness
Excellent chip removal
defined edge rounding for maximum service life
Large chip area for optimum chip flow
Ideal for NF metals and plastics

Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 6 mm
Cutting edge length: 25 mm
Clearance length: 31 mm
Length: 71 mm
Clearance diameter: 5,8 mm
Shank diameter: 6 mm
Edge radius: 0,5 mm
fz aluminium: 0,04 mm

ATORN-No.: 12040812

EAN no.: 4050293628609

Product Datasheet
