ATORN SC torus mill. cutt. w HA shaft, diameter 4.0 x 5 x 50 mm, T=2, radius 0.3

ATORN SC torus mill. cutt. w HA shaft, diameter 4.0 x 5 x 50 mm, T=2, radius 0.3

ATORN SC torus mill. cutt. w HA shaft, diameter 4.0 x 5 x 50 mm, T=2, radius 0.3
Item no: 1016893 102

Online price:

Still in stock: 6

Application
Torus milling cutter, standard version for machining non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO-coated
  • Radius tolerance = +/- 0.01 mm
  • Defined edge rounding of the cutting edge
  • centre cutting
  • with clearance

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 4 mm
Cutting edge length: 5 mm
Clearance length: 16 mm
Length: 50 mm
Clearance diameter: 3,9 mm
Shank diameter: 6 mm
Edge radius: 0,3 mm
fz aluminium: 0,048 mm

ATORN-No.: 12040781

EAN no.: 4050293628296

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC torus mill. cutt. w HA shaft, diameter 8.0 x 9 x 63 mm, T=2, radius 1.0
  •
    Roller sensor no.19b for dial gauges and precision pointers conn. thr. M2.5
  •

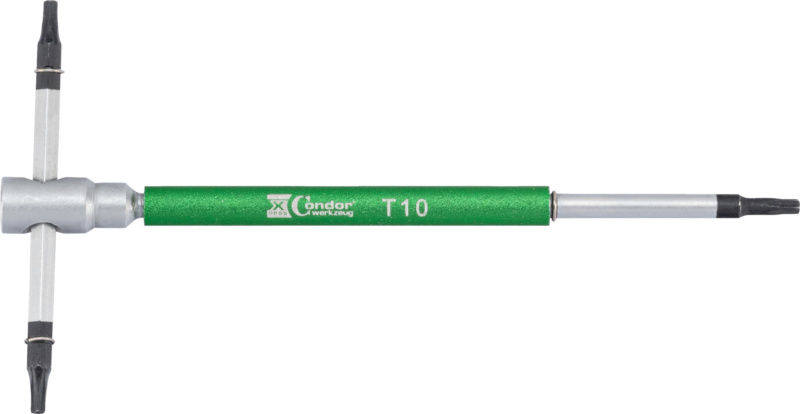

    TORX-Stiftschlüssel mit T-Griff 125x65mm T10
    10,71 €

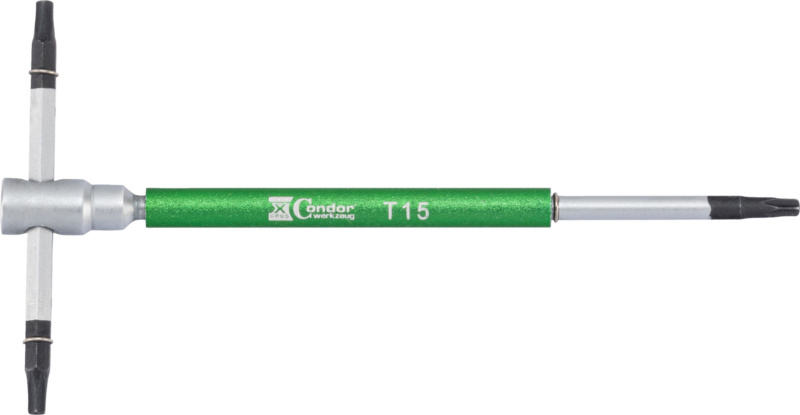

  • TORX-Stiftschlüssel mit T-Griff 125x65mm T15
    10,71 €

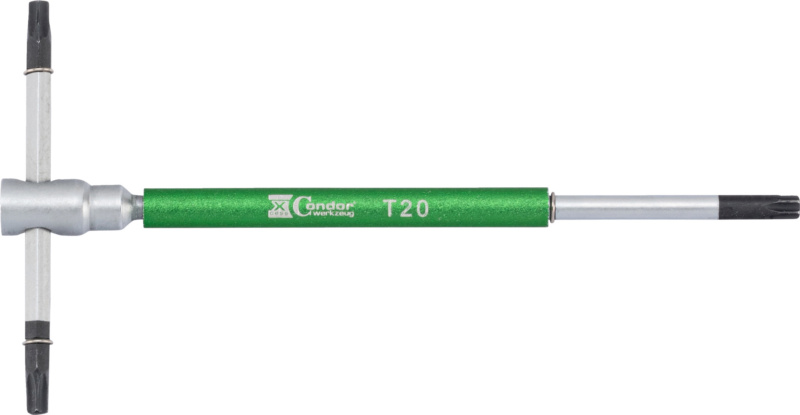

  • TORX-Stiftschlüssel mit T-Griff 125x65mm T20
    10,71 €

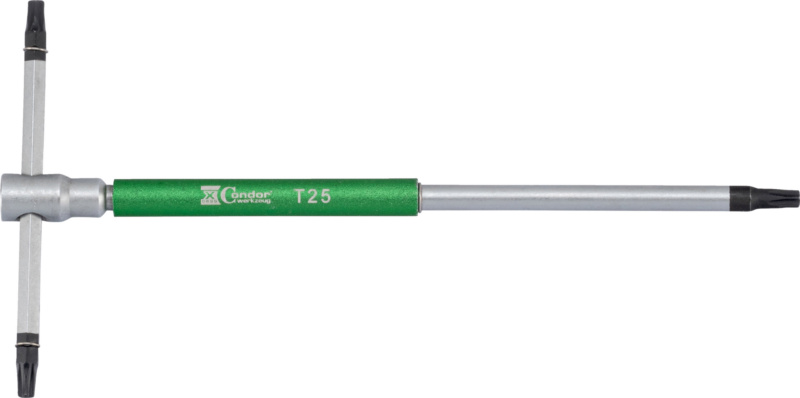

  • TORX-Stiftschlüssel mit T-Griff 180x90mm T25
    13,11 €

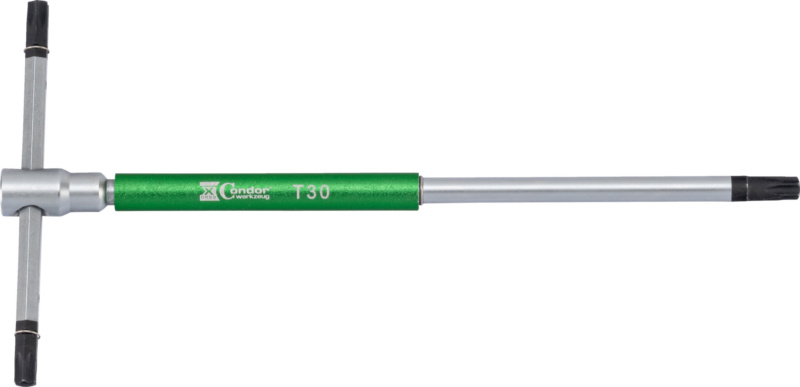

  • TORX-Stiftschlüssel mit T-Griff 180x90mm T30
